Handling & AttachmentsManufacturer in Turkey
Purpose-built lifting attachments and material-handling equipment designed to work with Cesan cranes and third-party hoists. Coil tongs, orange peel grabs, clamshell grabs, C-hooks, transfer cars, coil turning units, pipe lifters and more — all designed, manufactured and CE/DIN certified in-house.

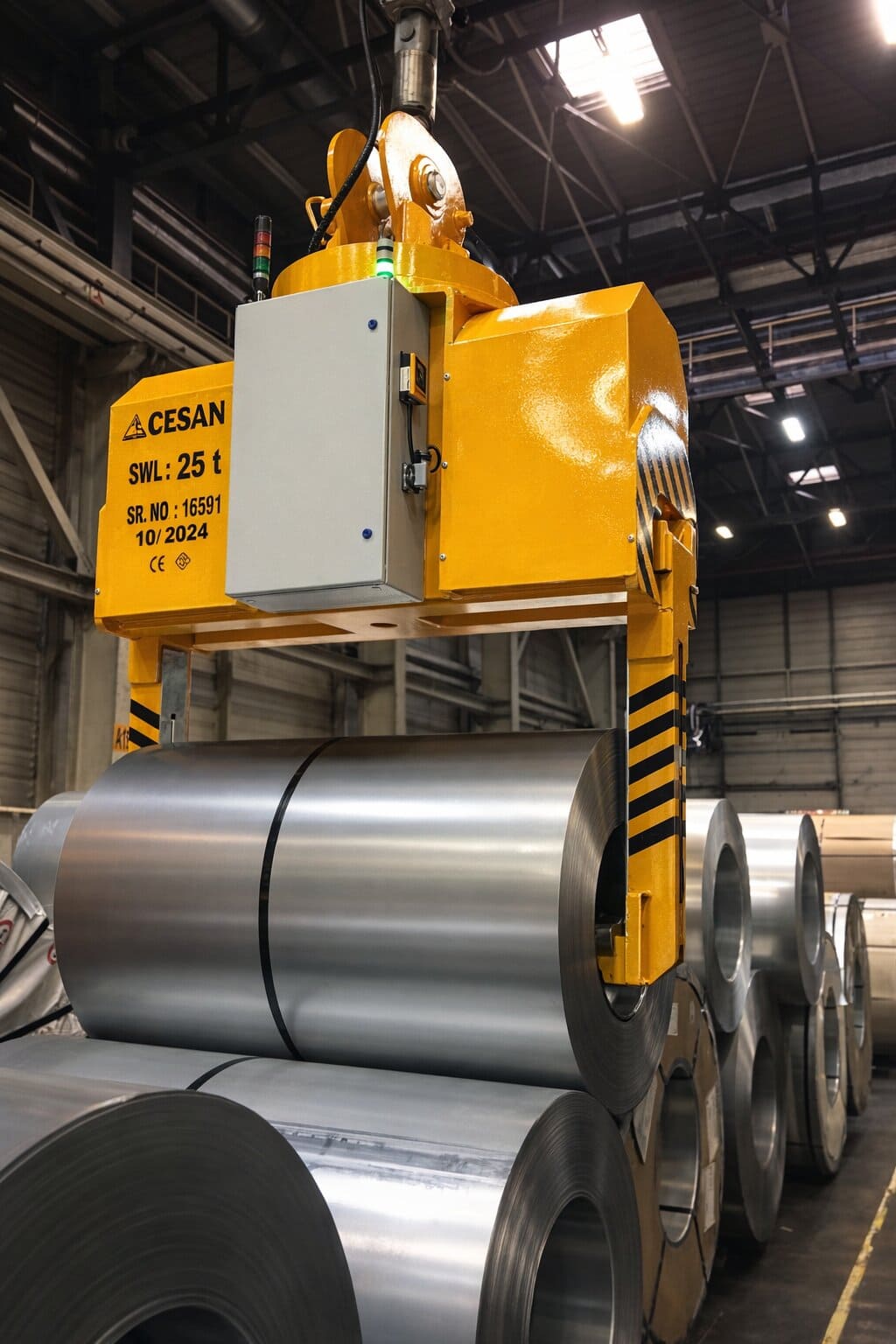

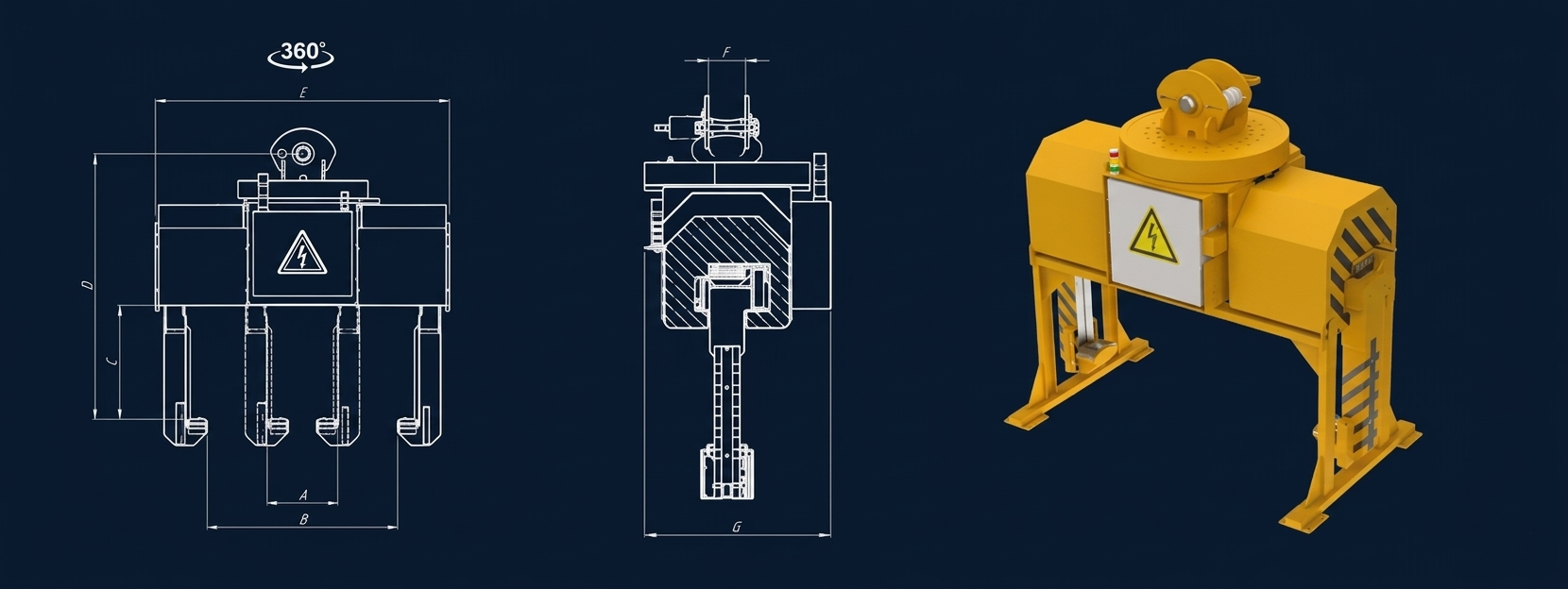

Coil Tong
Motorised coil lifting tong for steel and aluminium coils. Adjustable arm width grips the inner coil bore. Built-in 360° motorised rotation allows horizontal or vertical coil positioning for unwinding, storage, or press-loading — all from the pendant.
| Capacity (T) | Arm Speed | Rotation | A min | B max | C min | D min |
|---|---|---|---|---|---|---|
| 0.25 – 5 | 1–20 m/min | 0.25–4 RPM | 300 | 3000 | 500 | 1750 |
| 5 – 10 | 1–20 m/min | 0.25–3 RPM | 350 | 3000 | 600 | 2000 |
| 10 – 20 | 1–20 m/min | 0.25–3 RPM | 375 | 3000 | 750 | 2100 |
| 20 – 30 | 1–20 m/min | 0.25–2.5 RPM | 400 | 2750 | 900 | 2100 |
| 30 – 40 | 1–20 m/min | 0.25–2 RPM | 425 | 2750 | 1000 | 2250 |
| 40 – 50 | 1–20 m/min | 0.25–2 RPM | 500 | 2750 | 1000 | 2250 |
All dimensions in mm. Contact Cesan for special coil inner diameters or corrosive environments.

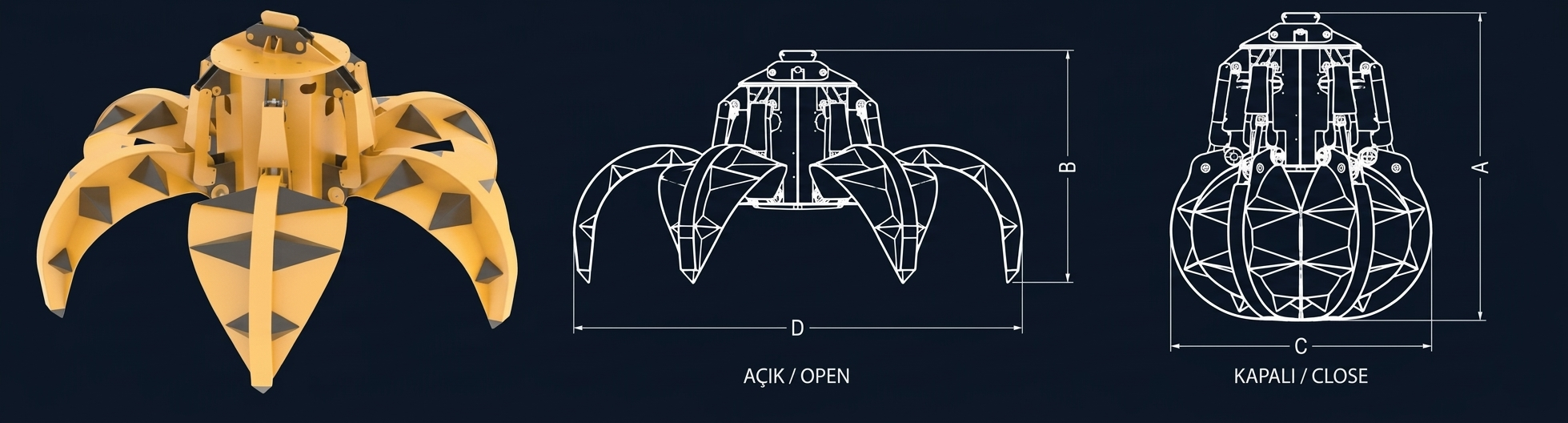

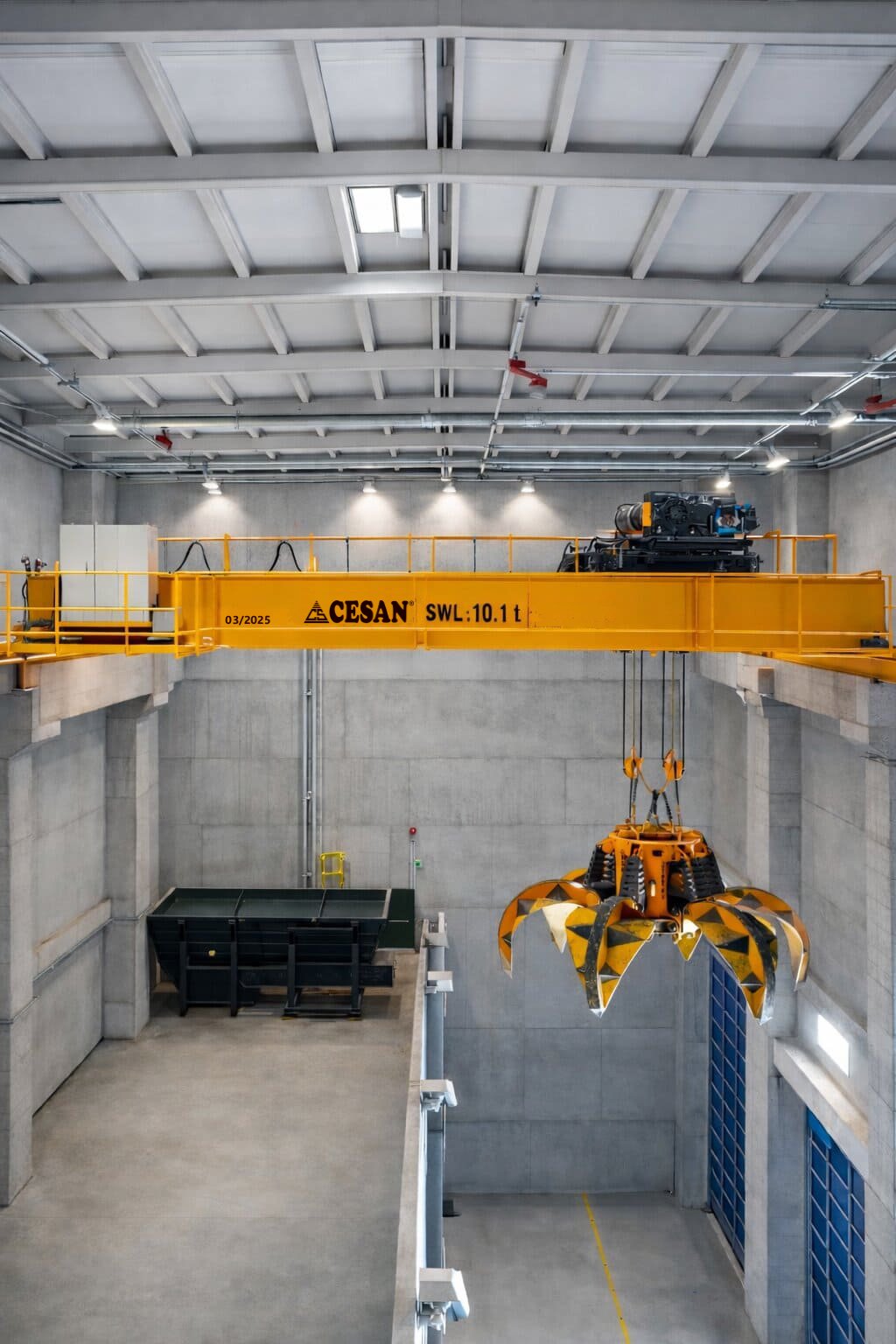

Electrohydraulic Orange Peel Grab
Multi-jaw electrohydraulic grab for scrap metal, demolition waste, stone, ore, and bulk irregular material. Fast open/close cycles and wide jaw spread allow high throughput. Hydraulic power unit mounts directly on the grab body for clean single-cable crane connection.
| Capacity (m³) | Close (s) | Open (s) | SWL (T) | Weight (kg) | A (mm) | D open (mm) |
|---|---|---|---|---|---|---|
| 0.5 | 10 | 8 | 2.5 | 1100 | 1850 | 2300 |
| 0.8 | 10 | 8 | 3.2 | 1250 | 1850 | 2300 |
| 1 | 10 | 8 | 5 | 1600 | 2150 | 2800 |
| 1.5 – 2 | 10 | 8 | 6.3 | 2700 | 2500 | 3100–3300 |
| 2.5 | 10 | 8 | 8 | 3000 | 2700 | 3600 |
| 3 | 12 | 9 | 10 | 4000 | 4000 | 3900 |
| 5 | 16 | 10 | 16 | 6750 | 3400 | 4500 |
| 10 | 16 | 10 | 30 | 10000 | 4200 | 5900 |
| 12 | 22 | 14 | 40 | 13000 | 4750 | 6100 |
A = height closed, D = open span. Full B/C dimension table in technical datasheet.
Clamshell Grab

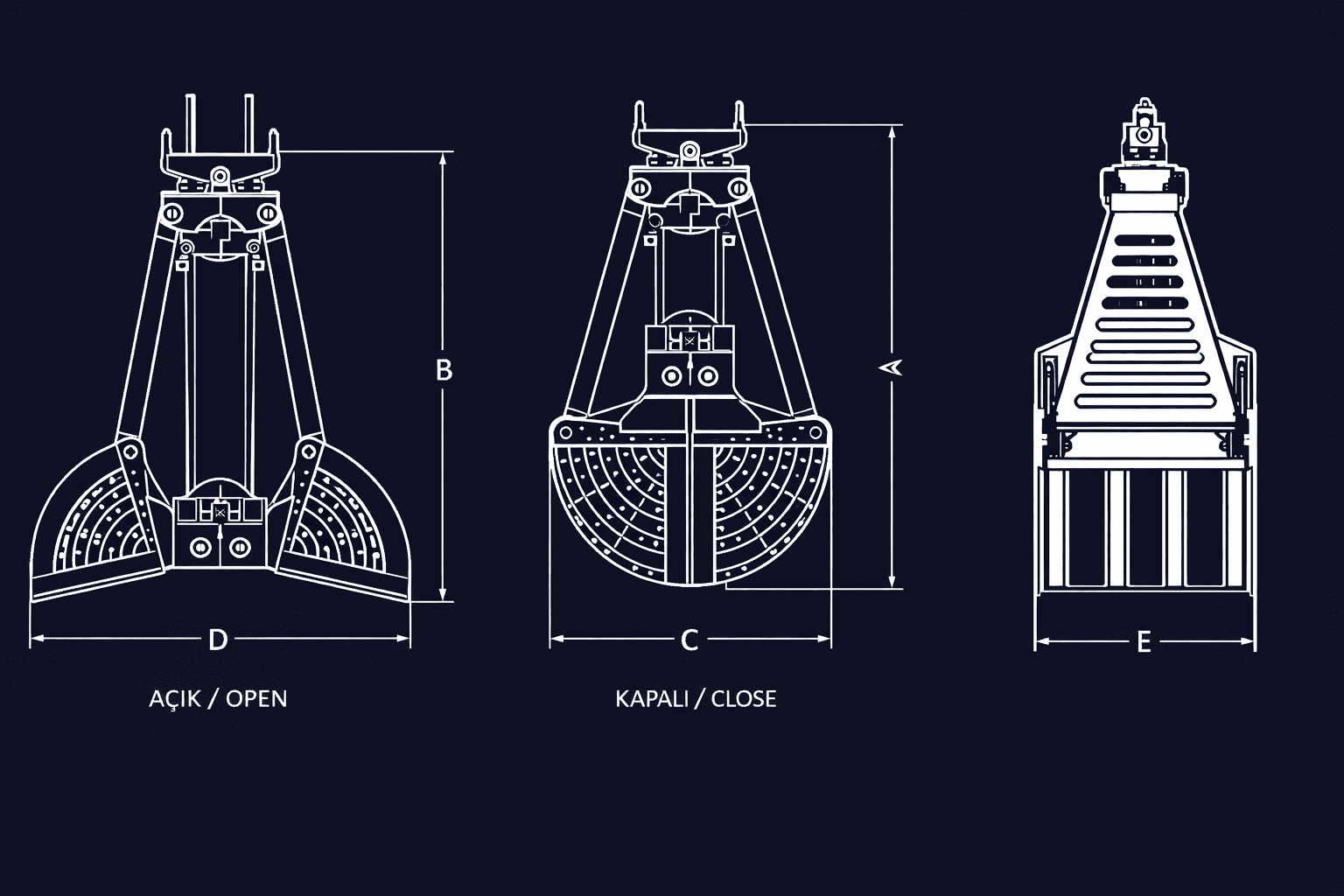

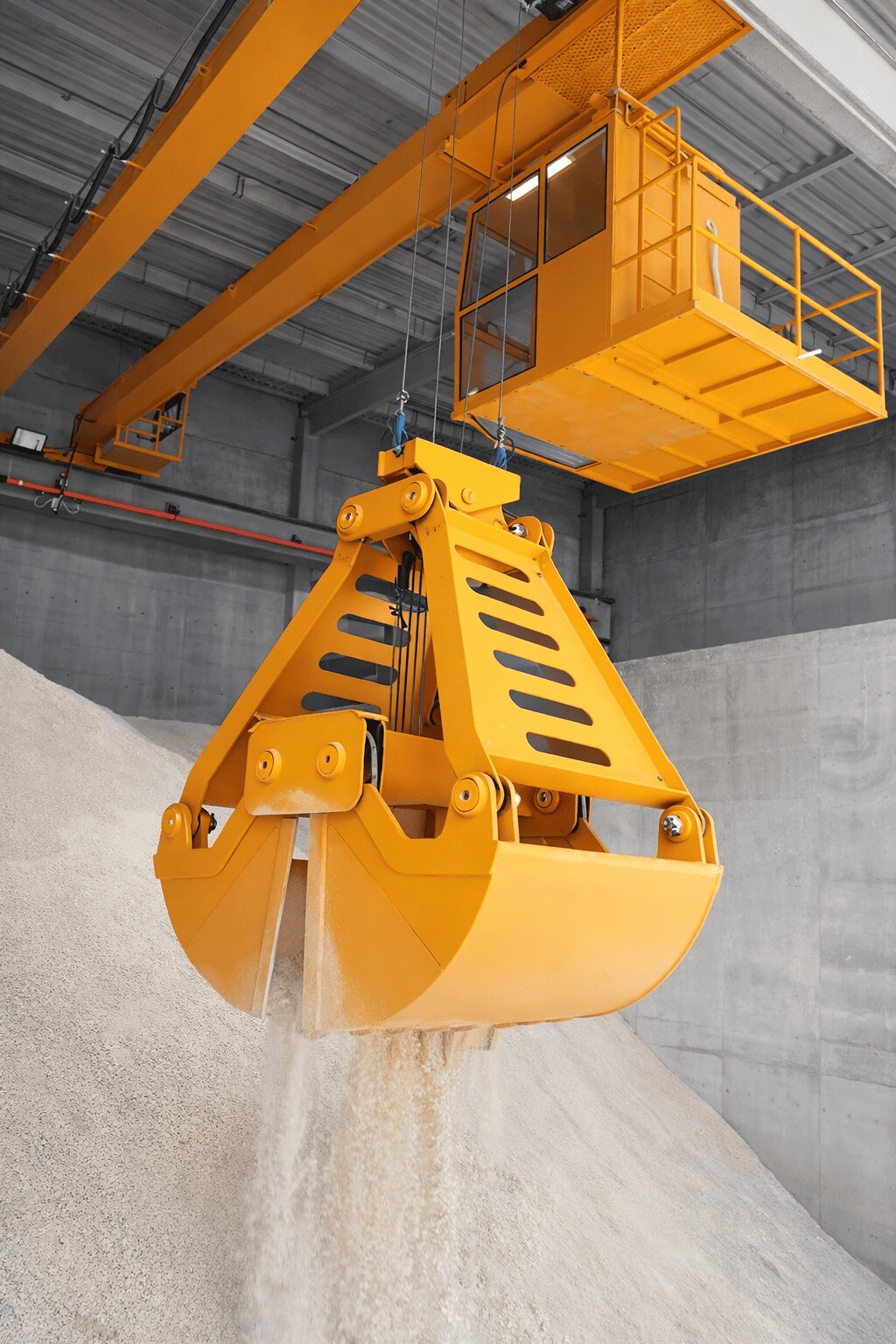

Mechanical Clamshell Grab
Rope-operated clamshell for bulk material handling — coal, sand, aggregate, grain, scrap. Lower cost, no electrical supply required.
| Capacity (m³) | SWL (T) | Weight (kg) | A open (mm) | B closed (mm) | D span (mm) |
|---|---|---|---|---|---|
| 2.5 | 5 | 2000 | 2800 | 3100 | 2350 |
| 3.5 | 8 | 2650 | 2850 | 3250 | 2650 |
| 4.5 | 10 | 3250 | 3560 | 3750 | 3575 |
| 7 | 15 | 5000 | 3870 | 4350 | 3800 |
| 11 | 20 | 7000 | 4100 | 4370 | 4200 |
| 18 | 32 | 10500 | 4850 | 5200 | 5300 |
| 23 | 40 | 13500 | 5250 | 5350 | 5500 |

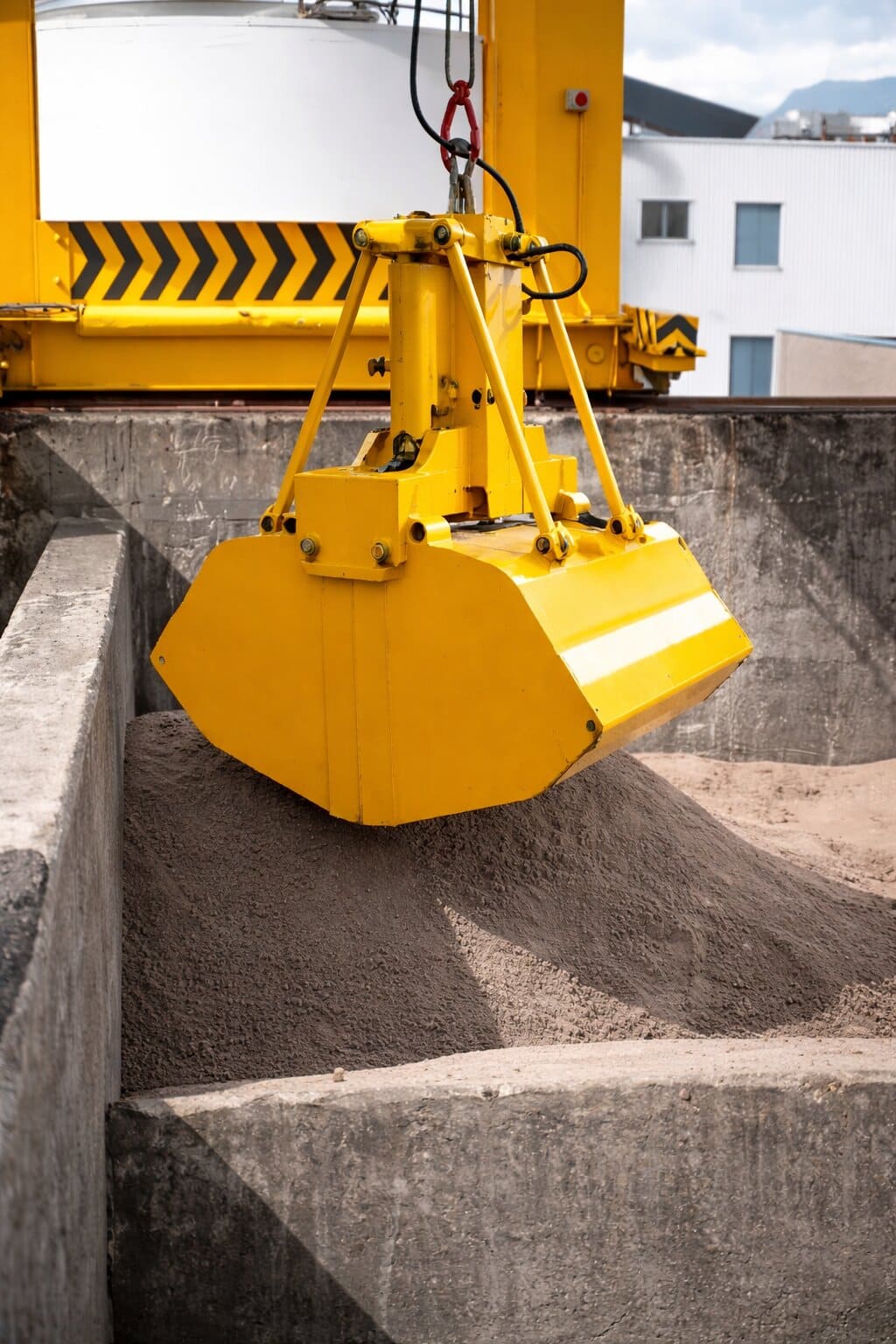

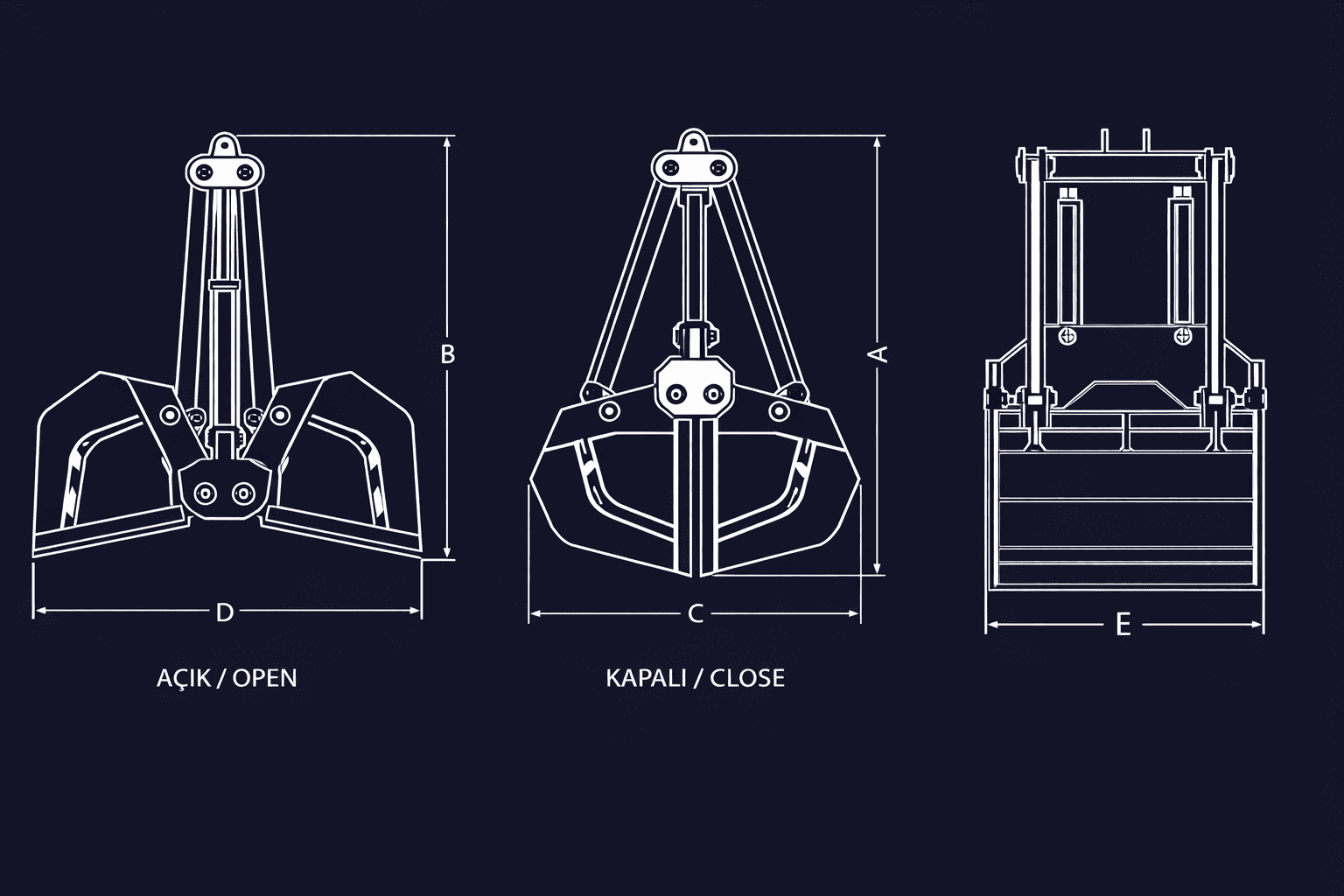

Electrohydraulic Clamshell Grab
Powered electrohydraulic clamshell for faster cycles and higher precision. Ideal for harbour, logistics, and high-throughput bulk handling.
| Capacity (m³) | Close (s) | Open (s) | SWL (T) | Weight (kg) | D open (mm) |
|---|---|---|---|---|---|
| 3 | 12 | 8 | 6.3 | 2800 | 2400 |
| 4 | 12 | 8 | 8 | 2900 | 2750 |
| 5 | 12 | 8 | 10 | 3250 | 3000 |
| 8 | 12 | 8 | 16 | 6600 | 3300 |
| 12 | 15 | 11 | 25 | 9000 | 3850 |
| 16 | 20 | 15 | 32 | 12500 | 4100 |
| 18 | 20 | 15 | 40 | 13000 | 4400 |

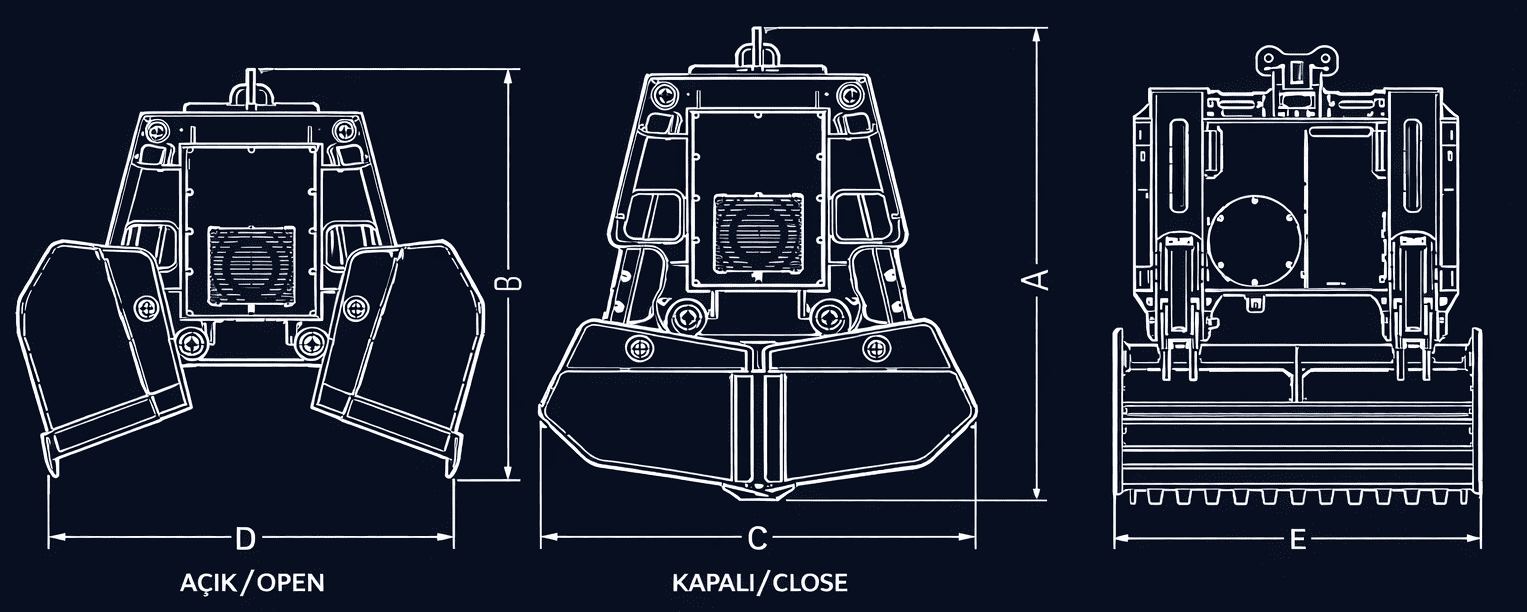

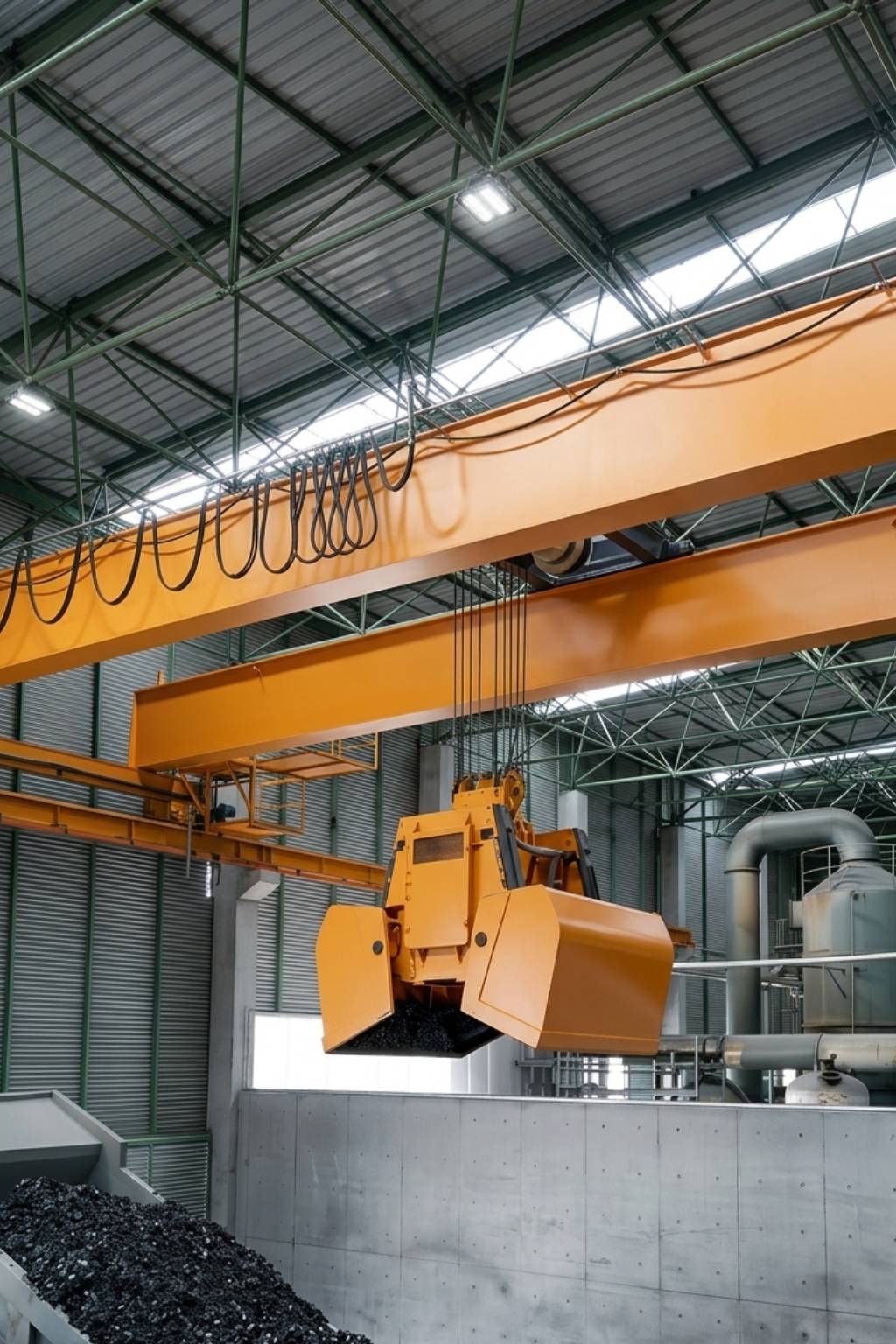

Dual Scoop Grab Bucket
Two-jaw electrohydraulic scoop grab for coal, aggregate, sand, grain, ore and similar loose products. Wide flat scoop geometry maximises fill volume per cycle. Self-contained HPU on grab body for single-cable crane connection.
| Capacity (m³) | Close (s) | Open (s) | SWL (T) | Weight (kg) | A | B | C | D open |
|---|---|---|---|---|---|---|---|---|
| 1 | 10 | 5 | 5 | 1750 | 1550 | 1100 | 1850 | 2350 |
| 1.5 | 10 | 5 | 8 | 2500 | 1800 | 1250 | 2350 | 2650 |
| 2 | 15 | 8 | 10 | 3200 | 1900 | 1350 | 2500 | 2850 |
| 2.5 | 15 | 8 | 12.5 | 3250 | 1900 | 1350 | 2500 | 2850 |
| 3 | 15 | 8 | 12.5 | 3900 | 2200 | 1450 | 2650 | 3250 |
| 3.5 | 15 | 8 | 15 | 4000 | 2200 | 1450 | 2650 | 3250 |
All dimensions in mm. E = side width dimension. Full table in technical datasheet.

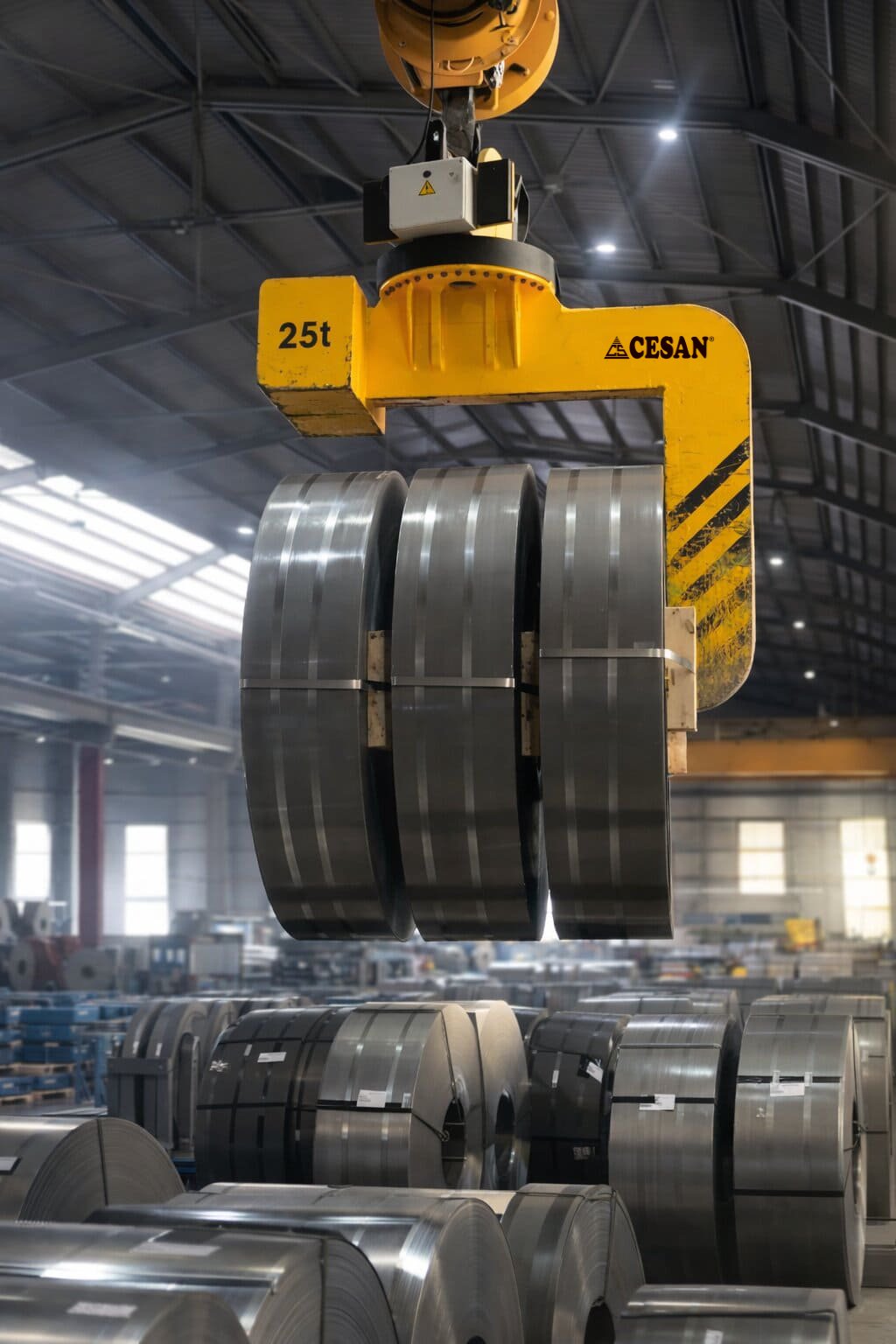

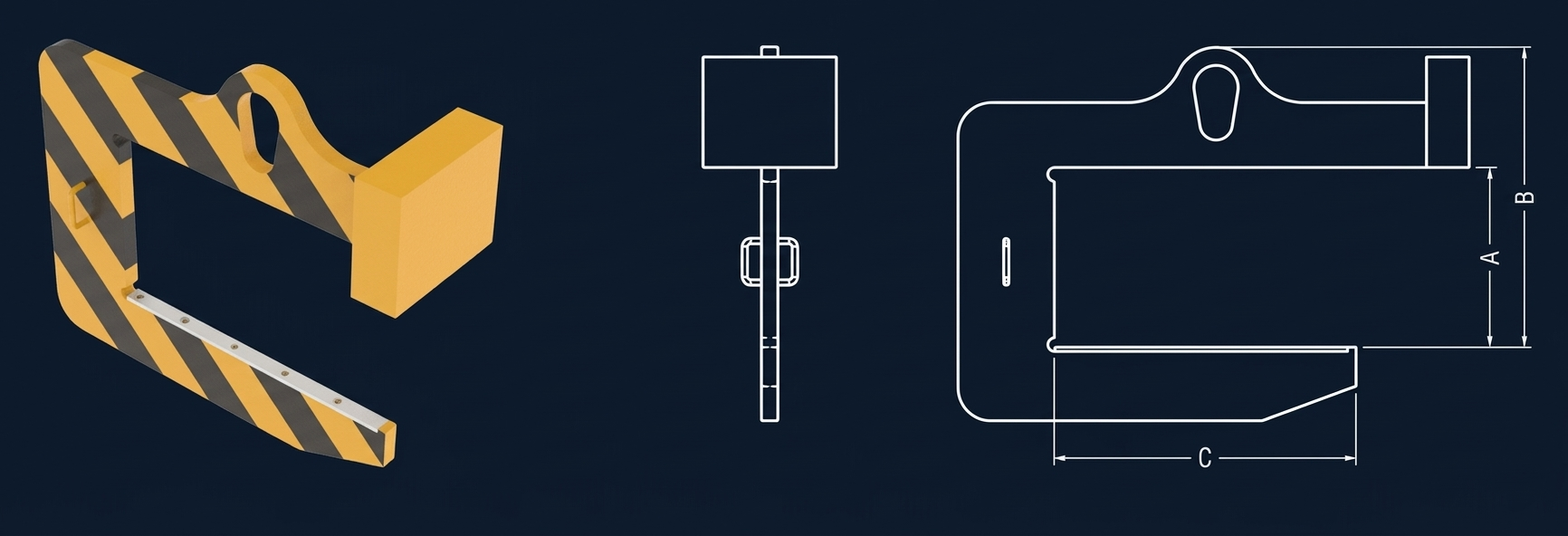

Motorised C-Hook
Heavy-duty C-hook for handling steel coils in vertical (eye-to-sky) orientation. Powered arm extension and retraction for hands-free coil pick-up and release. Suitable for cold-rolled and hot-rolled coil storage, slitting lines, and press shops.
| Capacity (kg) | Roll Width Max (mm) | Roll Width Min (mm) | C span (mm) |
|---|---|---|---|
| 5,000 | 915 / 1220 / 1525 | 610 / 765 / 915 | 765 / 990 / 1220 |
| 10,000 | 915 – 1830 | 610 – 1070 | 765 – 1450 |
| 15,000 | 1220 – 1830 | 765 – 1070 | 990 – 1450 |
| 20,000 | 1220 – 1830 | 765 – 1070 | 990 – 1450 |
| 25,000 | 1220 – 1830 | 765 – 1070 | 990 – 1450 |
| 30,000–35,000 | 1525 – 1830 | 915 – 1070 | 1220 – 1450 |
| 40,000 | 2135 | 1170 | 1655 |
Full A/B dimension table per roll-width variant in technical datasheet. Special widths on request.

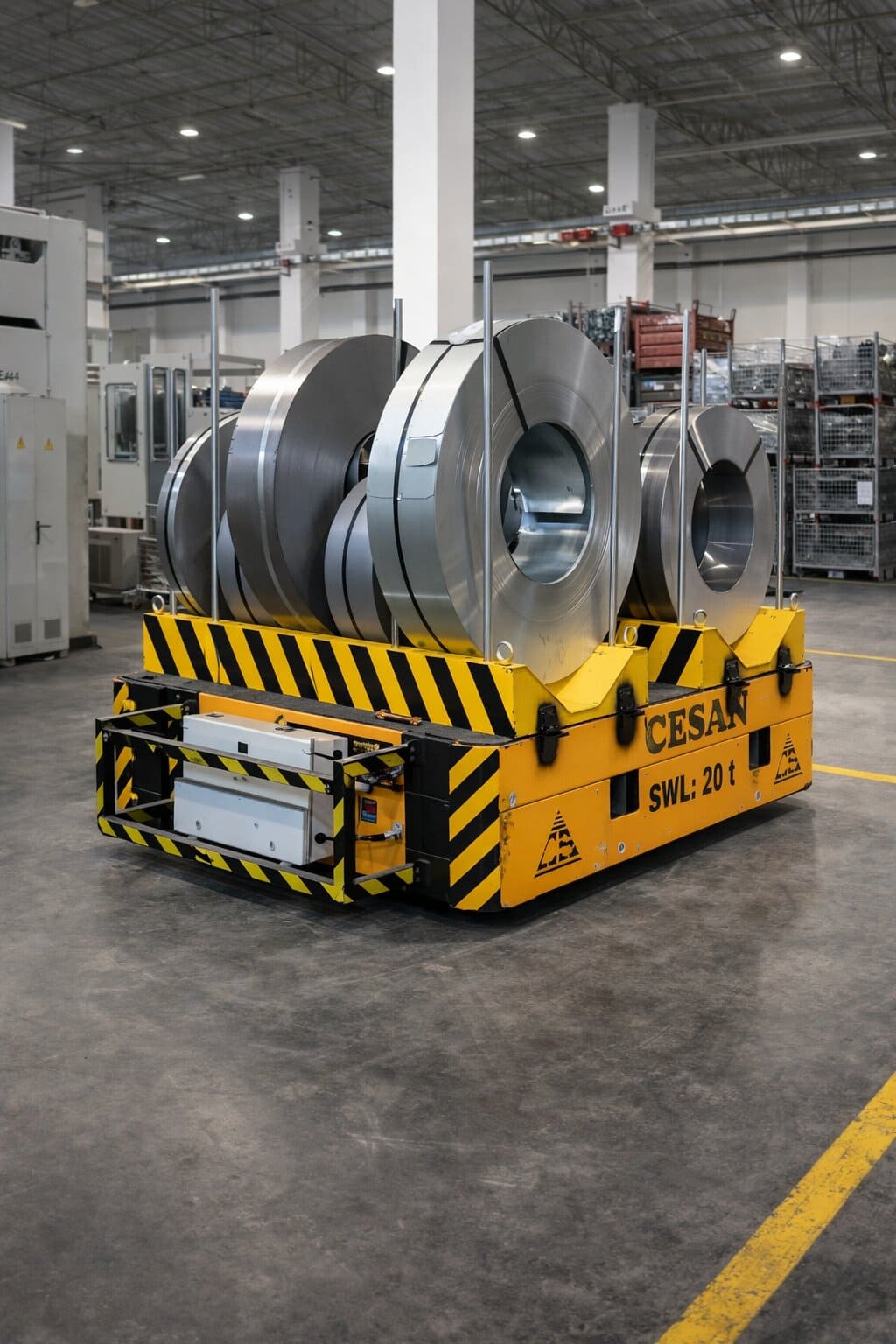

Transfer Car
Industrial transfer cars for moving heavy loads horizontally across production bays, between lines, and in/out of furnaces or booths. Rail-guided or battery-powered trackless versions with 360° steering.
Rail Transfer Car
Fixed-path, cable reel or busbar powered. High accuracy, PLC-compatible.
- Accurate, repeatable positioning
- Cable reel or busbar power
- Full automation compatible
- Pendant or radio remote
Battery Transfer Car
Trackless on flat floor. 360° turning, IP66 scanner, 4–6 hr battery life.
- No rail installation needed
- 360° turning capability
- 4–6 hr run / 6–8 hr recharge
- IP66 area scanner standard
Car Frame & Structure
Wheels & Drive
Safety & Controls

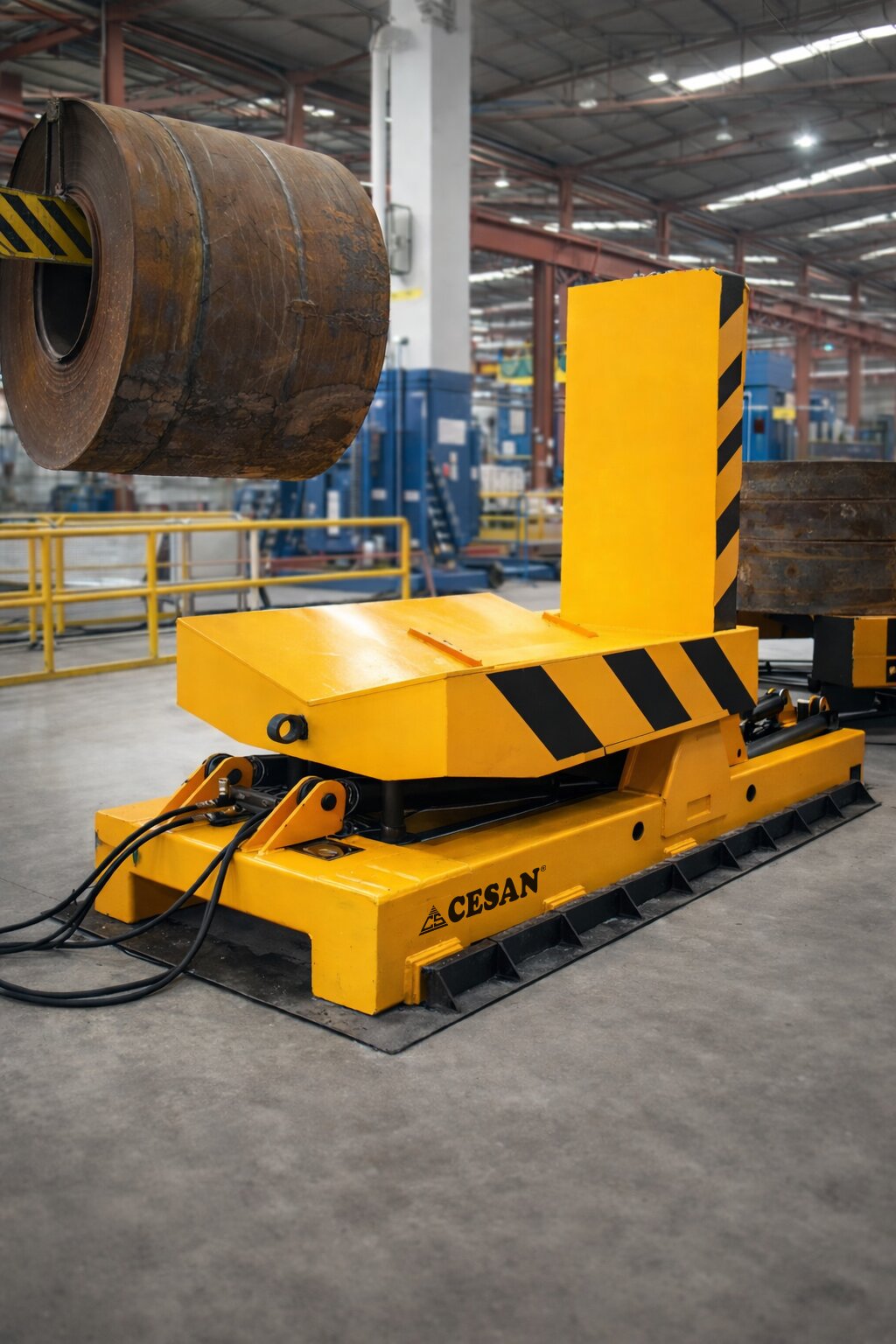

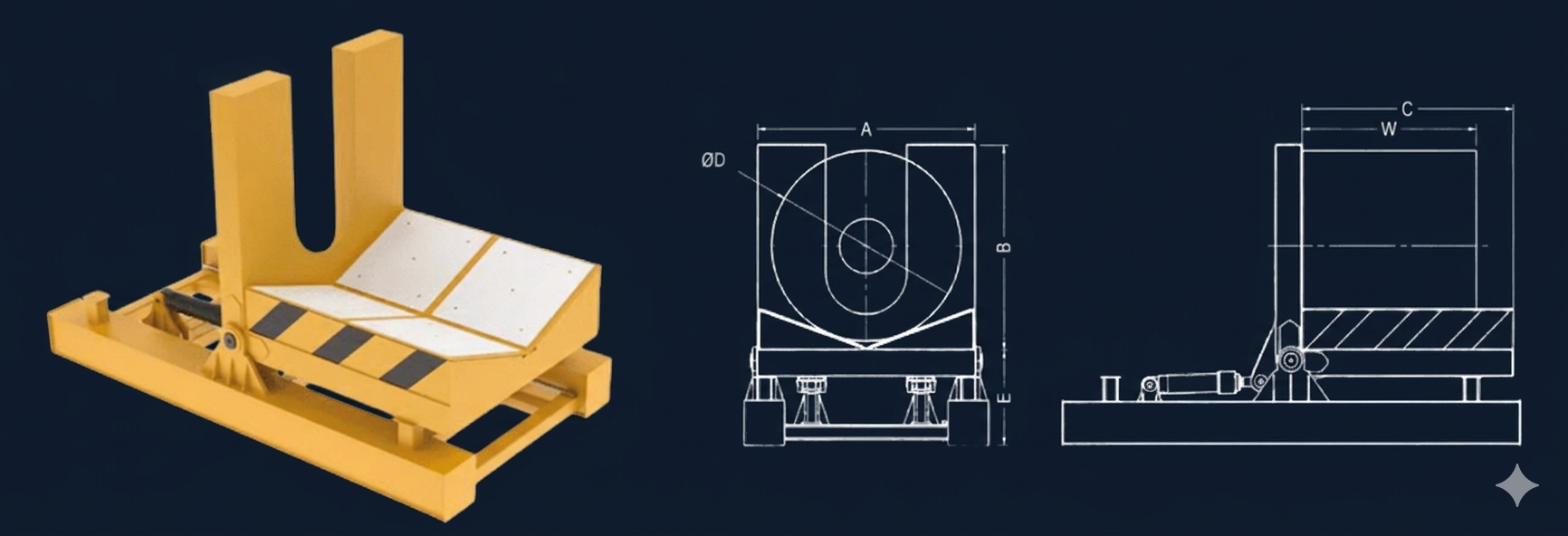

Coil Turning Equipment
Converts coils from horizontal (eye-to-wall) to vertical (eye-to-sky) orientation without lifting straps, chains, or manual positioning. Available as turning-only (Type C W) or turning & rotation combined (Type C WD).
- Safe and fast turning without lifting straps — no coil surface damage
- Space-saving construction — side loading from one direction (WD series)
- Easy mounting, ready to plug in — integrated control panel
- Optional safety guards available
- Special units for non-standard coil sizes on request
| Capacity (T) | Outer Ø max | Coil Length W | A | B | C | E |
|---|---|---|---|---|---|---|
| 5 | 1000 | 1500 | 1200 | 1200 | 1800 | 750 |
| 10 | 1300 | 1500 | 1500 | 1500 | 1800 | 750 |
| 15 | 1300 | 2000 | 1500 | 1500 | 2300 | 800 |
| 20 | 1500 | 2000 | 1700 | 1700 | 2300 | 800 |
| 25 | 1500 | 2500 | 1700 | 1700 | 2800 | 850 |
| 30 | 1600 | 2500 | 1800 | 1800 | 2800 | 850 |
| 35 | 1700 | 2500 | 1900 | 1900 | 2800 | 900 |
| 40 | 1800 | 3000 | 2000 | 2000 | 3300 | 900 |
All dimensions in mm. Special units for non-standard coil sizes on request.

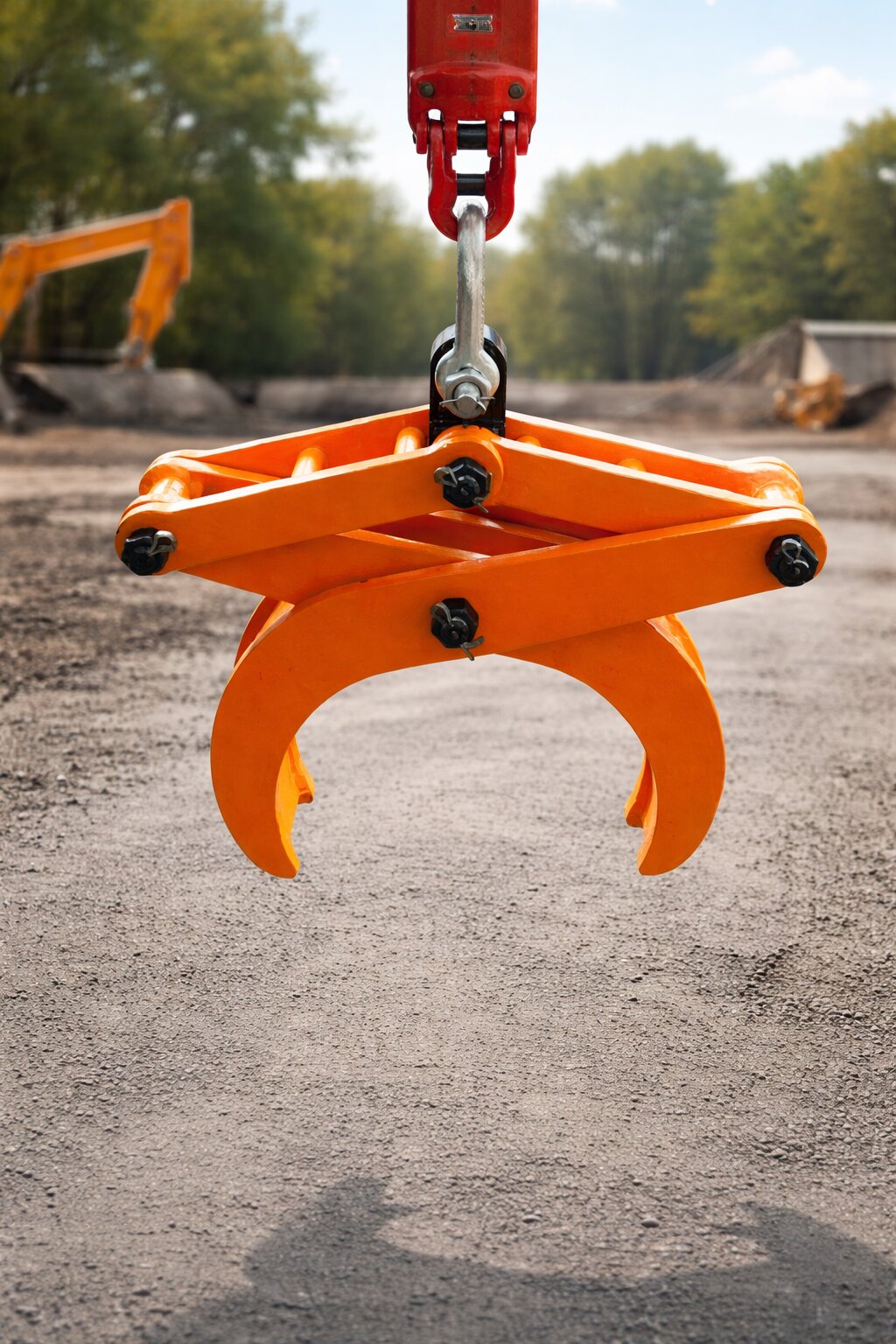

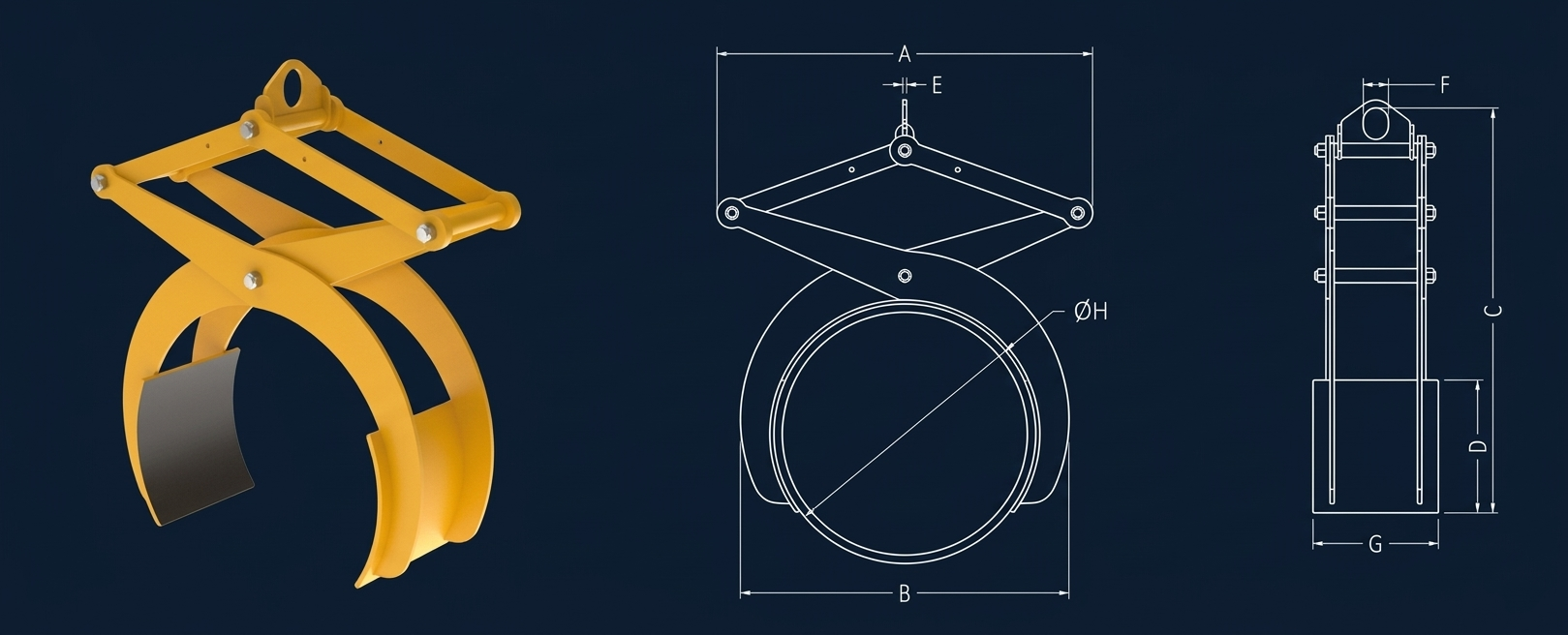

Pipe Lifting Equipment
Adjustable pipe lifting clamp for cylindrical loads — pipes, tubes, rolls, barrels and drums. Curved saddle arms self-centre around the outer diameter and lock mechanically under load. 4 standard sizes from 500 kg to 1,000 kg.
| Type | Capacity (kg) | ØH Min | ØH Max | A min | A max | B min | B max |
|---|---|---|---|---|---|---|---|
| 1 | 500 | 250 | 400 | 500 | 650 | 375 | 630 |
| 2 | 700 | 360 | 640 | 800 | 1000 | 570 | 950 |
| 3 | 850 | 600 | 800 | 870 | 1150 | 650 | 1290 |
| 4 | 1000 | 750 | 900 | 950 | 1290 | 750 | 1430 |
D=220–480 mm, E=10 mm, F=60 mm, G=300 mm constant. Contact Cesan for larger diameters or higher capacities.

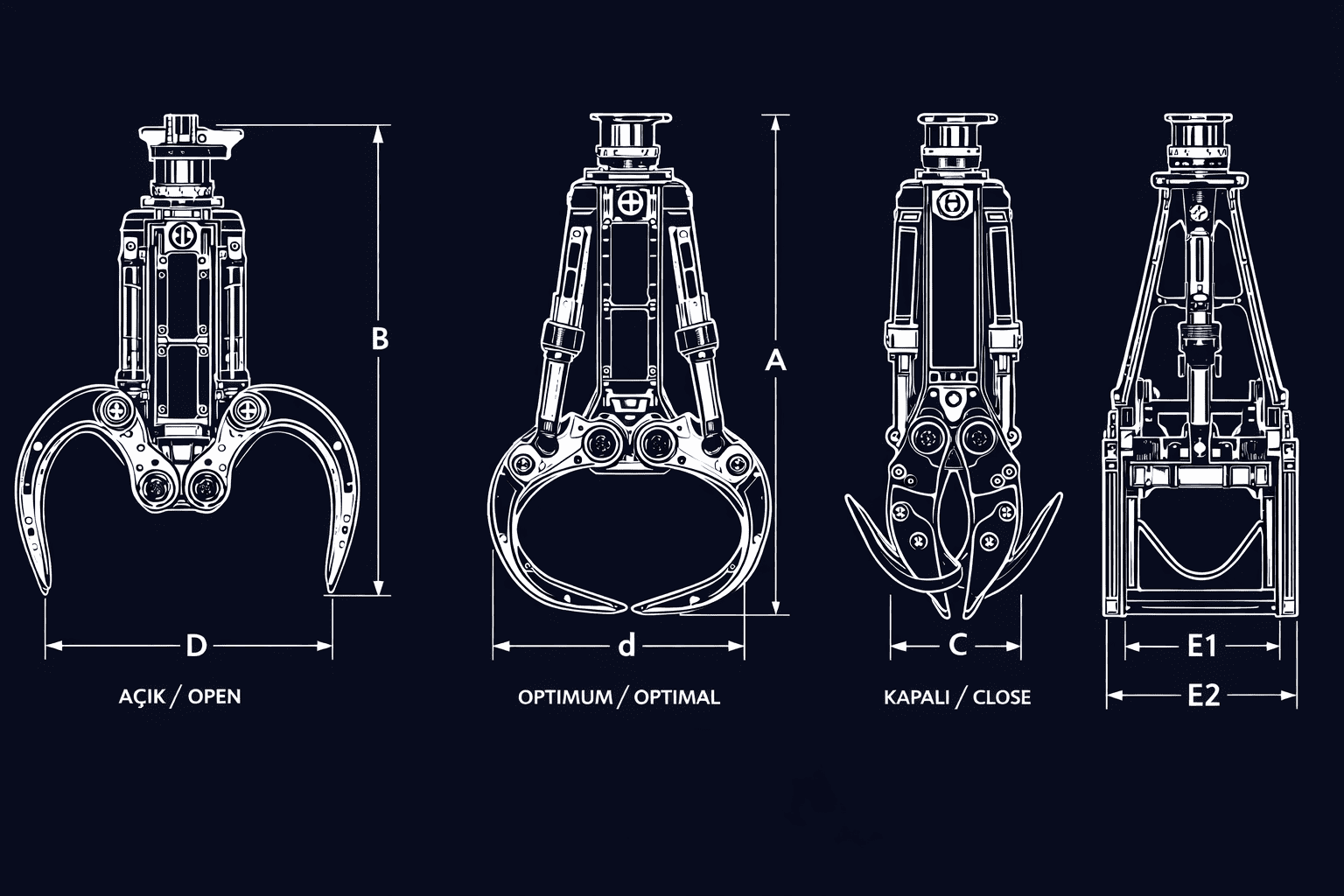

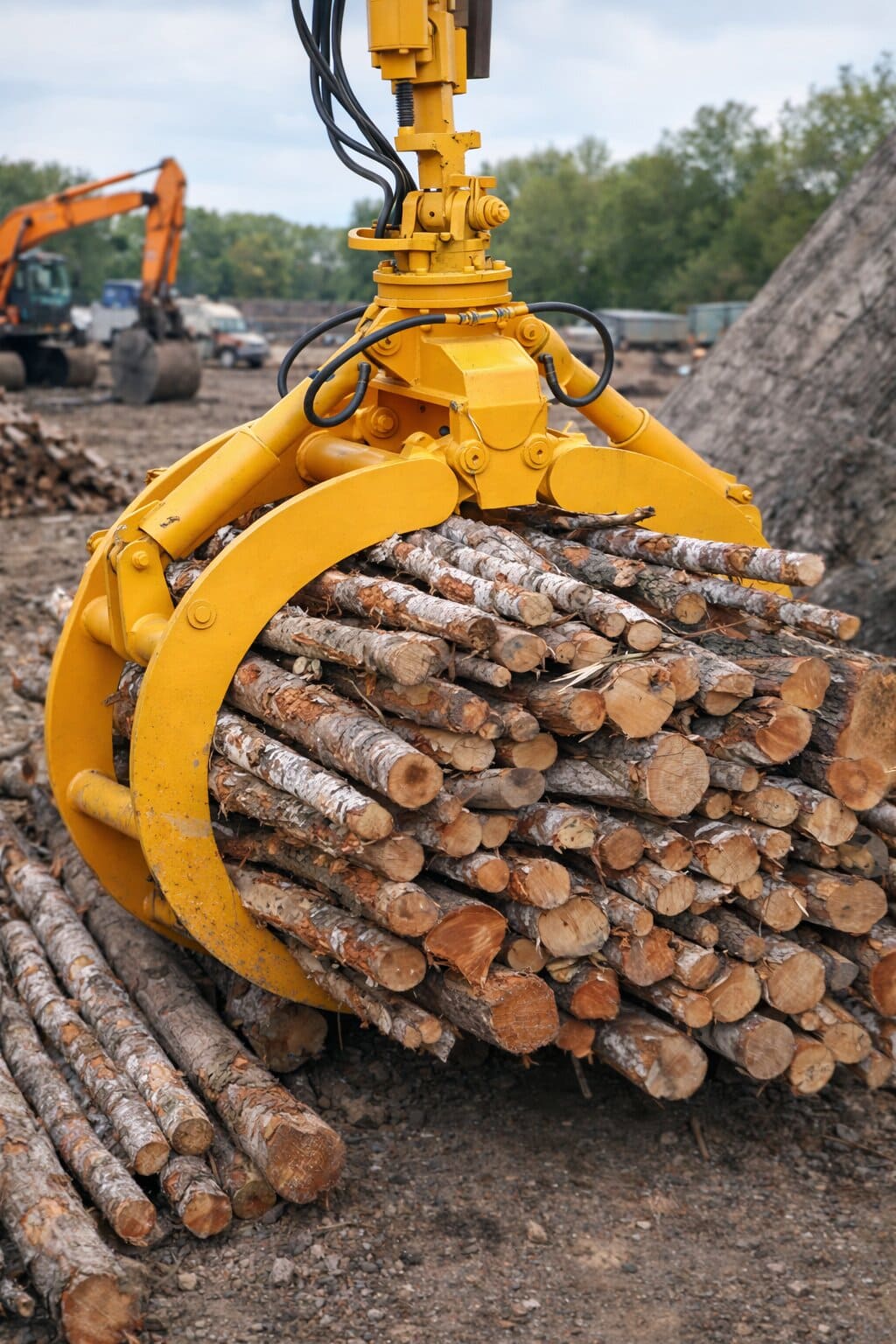

Electrohydraulic Timber Grab
Curved-arm electrohydraulic grab for timber logs, lumber bundles, and long cylindrical loads in sawmills, ports, and wood processing facilities. 16 standard types covering 4–8 m trunk lengths at 0.8–3.5 m³ capacity.
| Type | Trunk (m) | Capacity (m³) | Weight (kg) | A (mm) | B (mm) | D open (mm) |
|---|---|---|---|---|---|---|
| 1 | 6 | 0.8 | 1550 | 2730 | 2075 | 2310 |
| 2 | 5 | 1.0 | 1600 | 2830 | 2140 | 2510 |
| 4 | 4 | 1.5 | 1720 | 3080 | 2210 | 2860 |
| 7 | 5 | 1.5 | 1945 | 3200 | 2240 | 2990 |
| 9 | 8 | 1.25 | 2350 | 3230 | 2385 | 2850 |
| 12 | 6 | 2.0 | 2505 | 3560 | 2540 | 3530 |
| 13 | 6 | 2.5 | 2590 | 2940 | 1650 | 4100 |
| 15 | 5 | 3.25 | 2740 | 3310 | 1760 | 4870 |
| 16 | 4 | 3.5 | 2880 | 3460 | 1810 | 4960 |
E1=650 mm, E2=810 mm constant. Full 16-type table with C/d dimensions in technical datasheet.

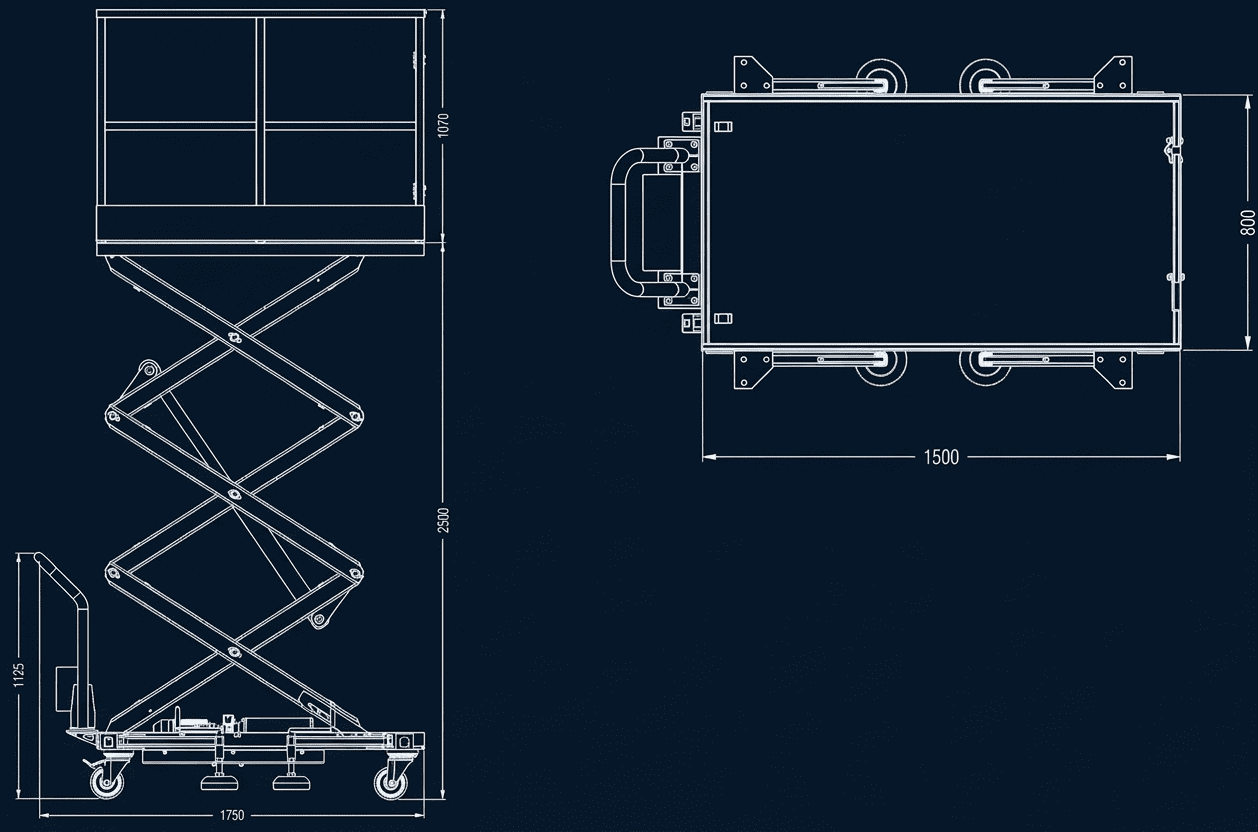

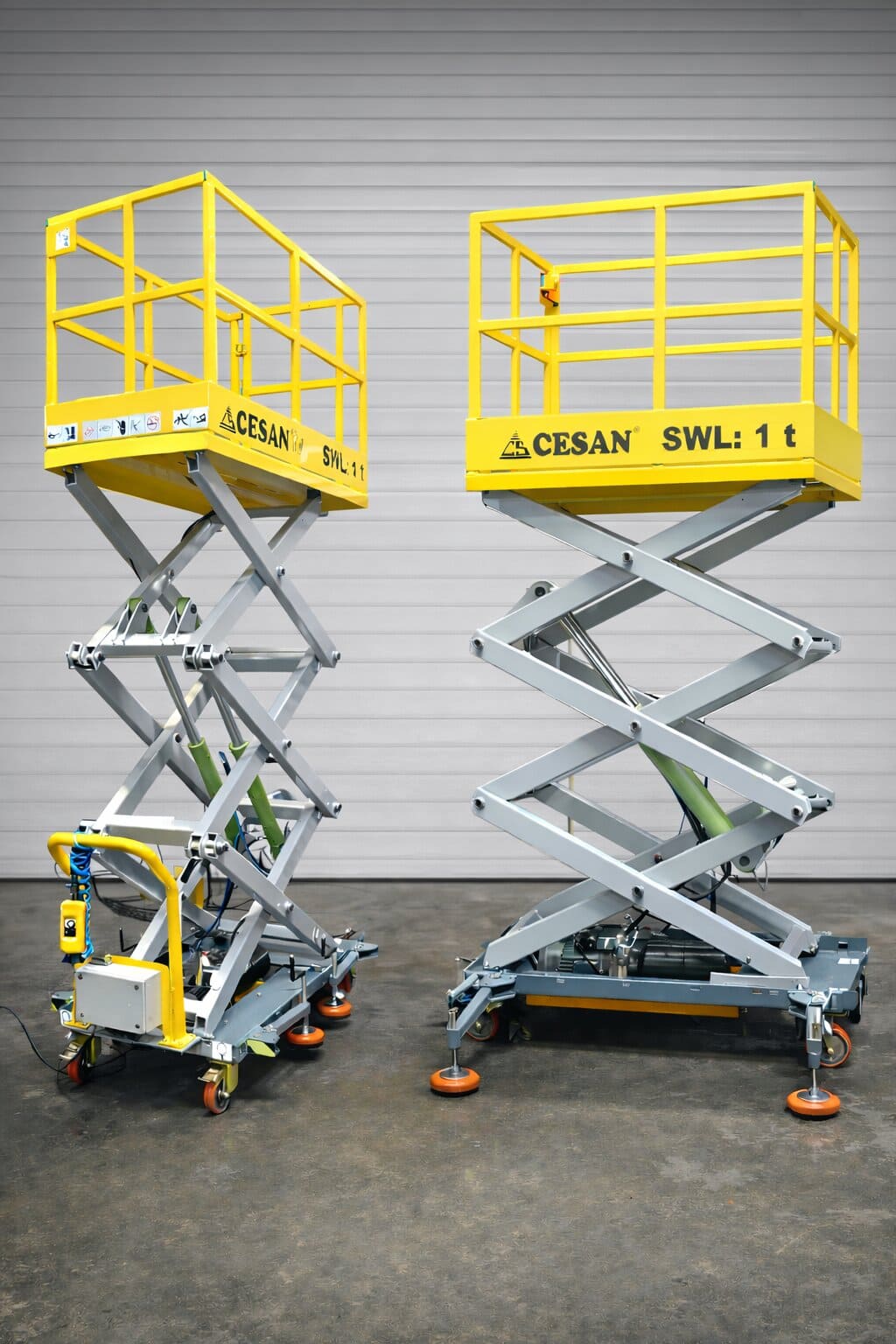

Hydraulic Lifting Platform
Scissor-lift hydraulic platform for raising loads to working height in factories, warehouses and assembly areas. 250 kg to 5,000 kg capacity, heights to 14,000 mm. Mobile version on caster wheels with push handle.
| Parameter | Unit | Value |
|---|---|---|
| Capacity | kg | 250 – 5,000 |
| Table Area | mm | 275 – 1,100 |
| Max Table Height | mm | 1,000 – 14,000 |
| Table Dimensions | mm | 1,500 × 800 |
| Wheel Dimensions | mm | 150 × 45 |
| Lifting Speed | s | 20 – 75 |
Platform footprint 1750×1125 mm (mobile version). Custom table sizes and fixed-base versions available.

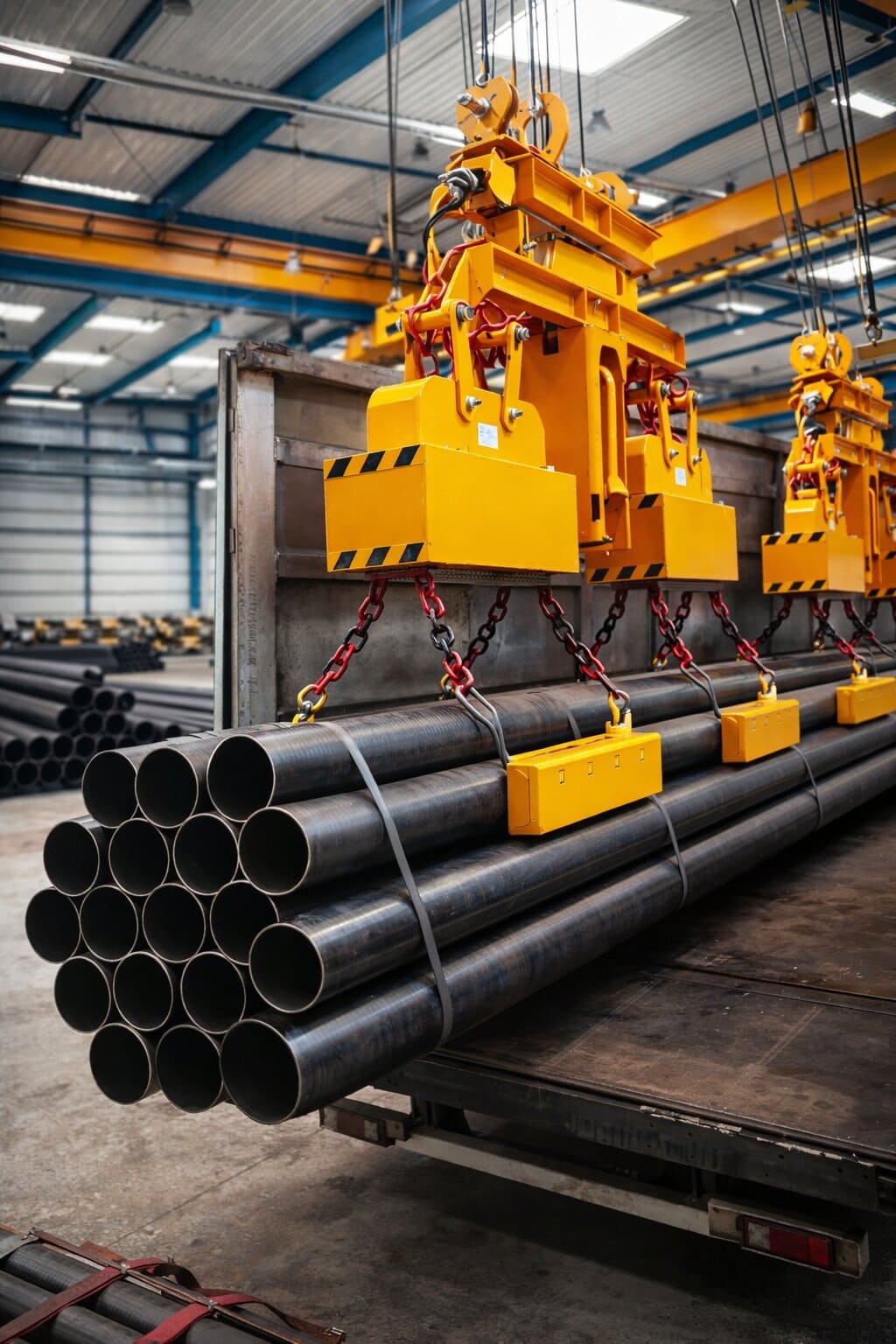

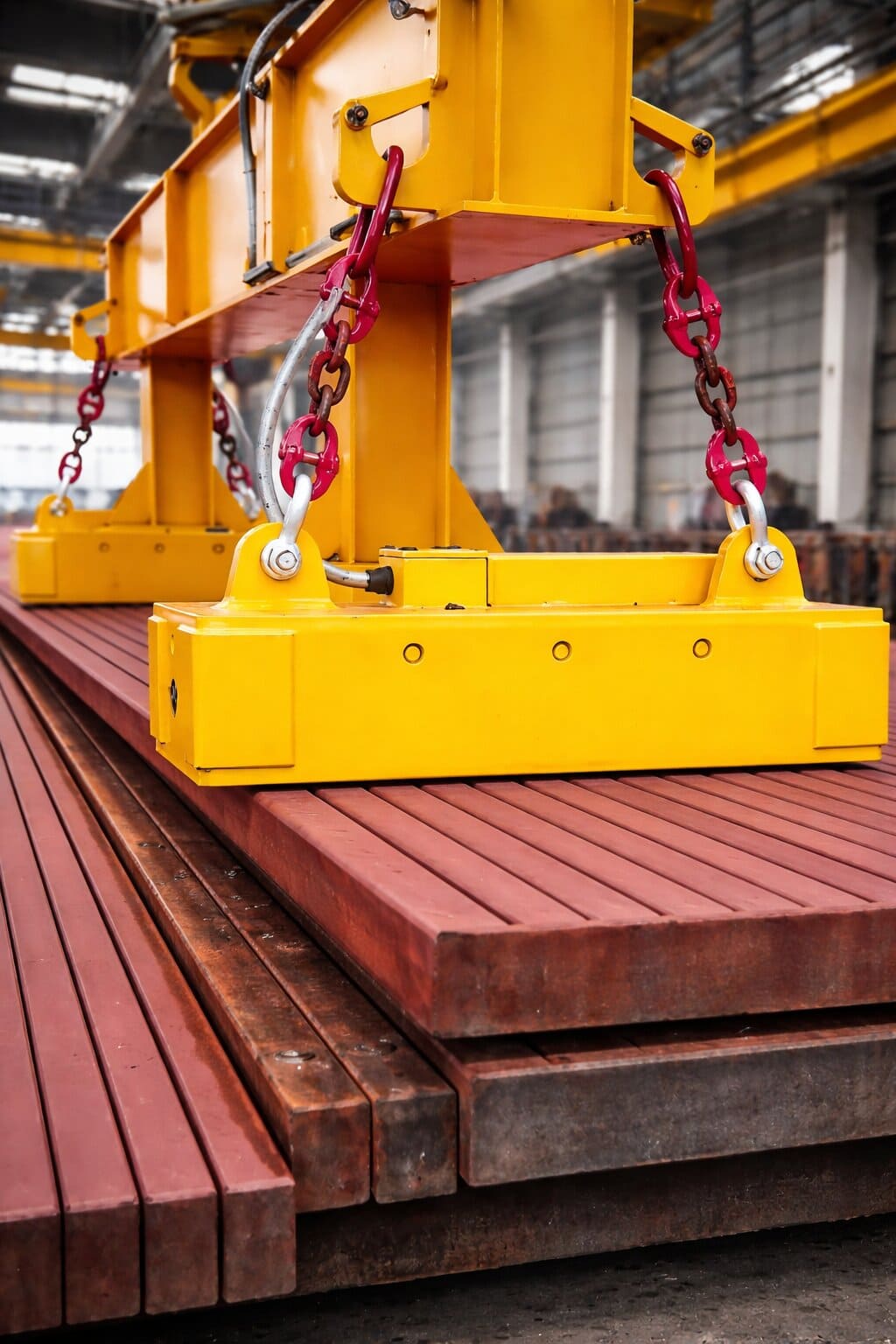

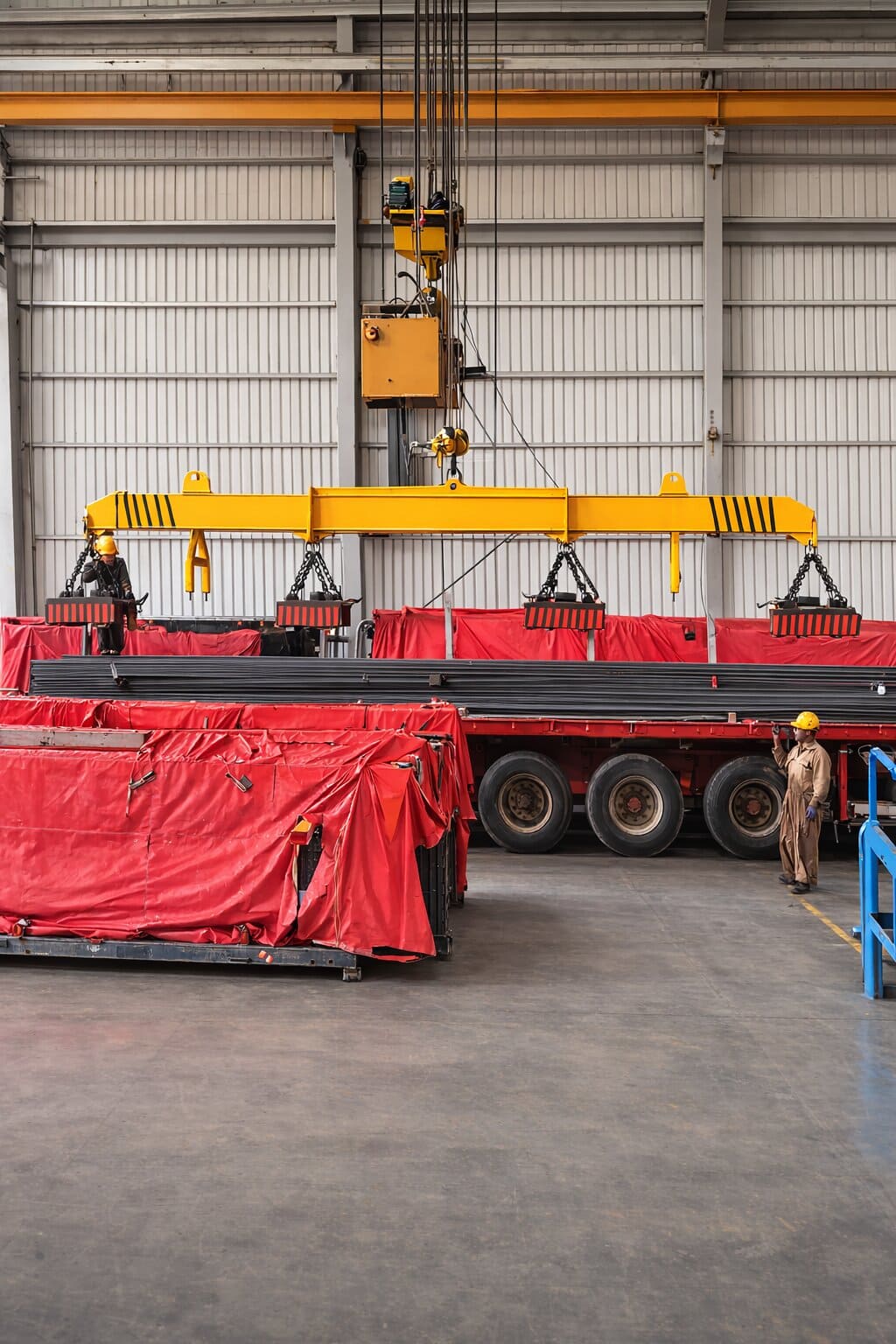

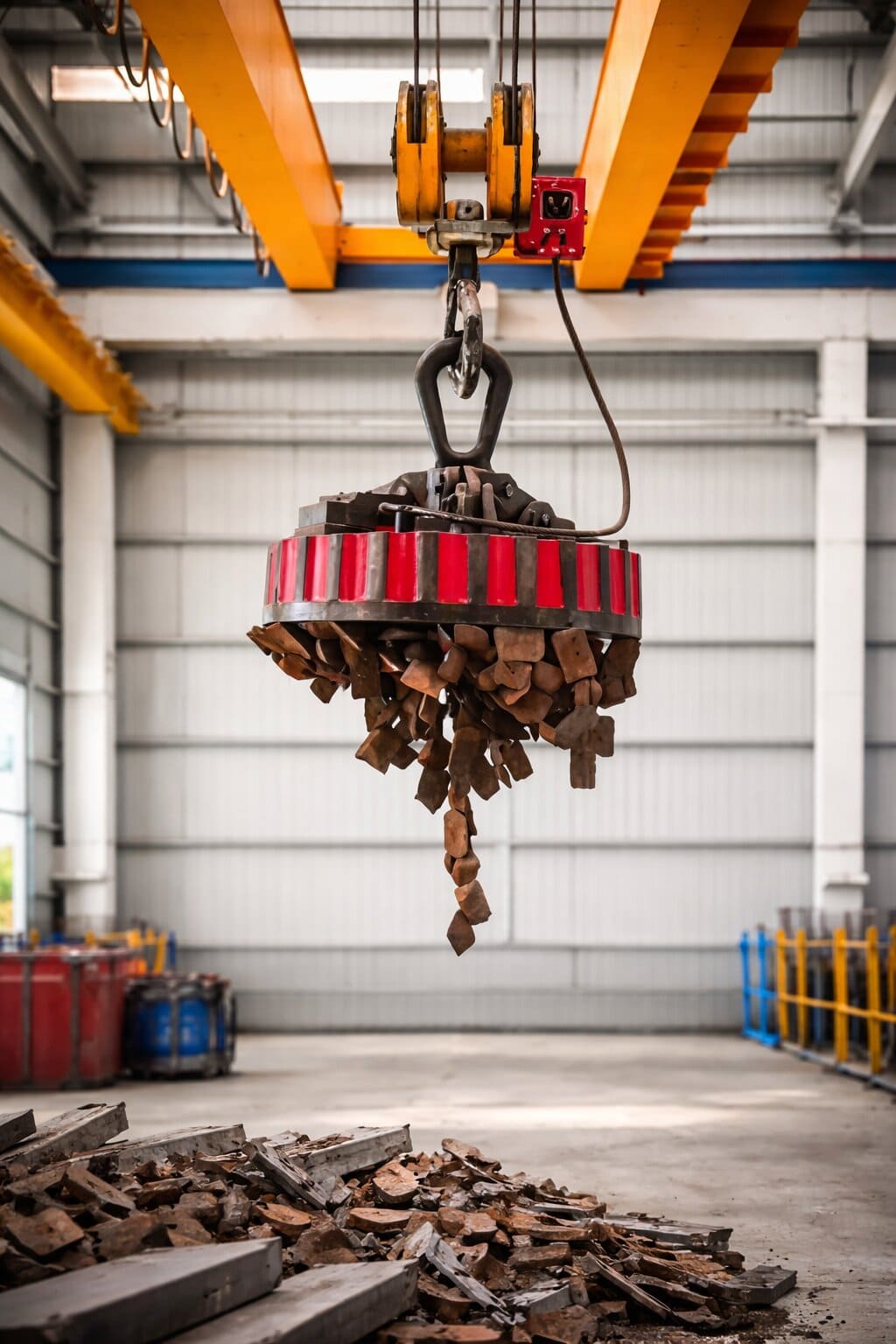

Lifting Magnets
Electromagnetic lifting magnets for steel plates, billets, beams, scrap, pipes and ferromagnetic materials. All supplied with rectifier control panel and cable management. Battery backup option for safe load lowering on power failure.
Magnet capacity, diameter, and voltage depend on load material, surface condition, and crane SWL. Contact Cesan with your material type, load weight, and crane details for a full specification.
DIN 15018 / FEM & CE — Every Attachment
All Cesan lifting attachments are designed and manufactured in compliance with DIN 15018 and relevant FEM norms. CE marking is applied across the product range under Machinery Directive 2006/42/EC. Full documentation — including EC Declaration of Conformity, test certificates, and maintenance manuals — is supplied with every shipment.
Single-Source Integration with Cesan Cranes
Attachments are designed alongside Cesan overhead cranes, jib cranes, and hoists — not as afterthoughts. Electrical interfaces, control pendants, and structural mounting points are coordinated from the outset, eliminating compatibility surprises on site.
Custom Attachments Engineered to Your Load
Standard ranges cover the majority of applications, but Cesan regularly designs and produces one-off attachments: tunnel segment tongs, container spreaders, slab tongs, billet tongs, custom traverse beams, and rotation apparatus. Provide your load dimensions, weight, cycle rate, and environment for a full technical proposal.
Can't Find What You Need ?
Beyond the standard catalogue — tunnel segment tongs, container spreaders, traverse beams, billet tongs, slab tongs, and rotation apparatus are all produced on request. Send us your load, dimensions, cycle rate and environment and we'll engineer a solution.
