Electric Wire
Rope Hoists
The mechanical heart of every Cesan crane system. Purpose-built for continuous high-duty cycles, precise load control, and long service life — from compact assembly workshops to heavy-tonnage port operations.
Smooth Start / Stop
Specially designed motors and gearboxes eliminate sudden movement, reducing load sway and mechanical wear for longer service life and precise positioning.
Flexible Control
Operated via pendant push-buttons along the girder or wireless remote control. Fixed or travelling operator cabins available for heavy-duty installations.
Cesan Guarantees
Minimum hook movement, minimum hook dimensions, minimum approaching distance, minimum goods waving, minimum abrasion — all standard across every unit.
Our Product Range
Four purpose-engineered configurations — from compact low-headroom monorails to extreme-load double girder systems.

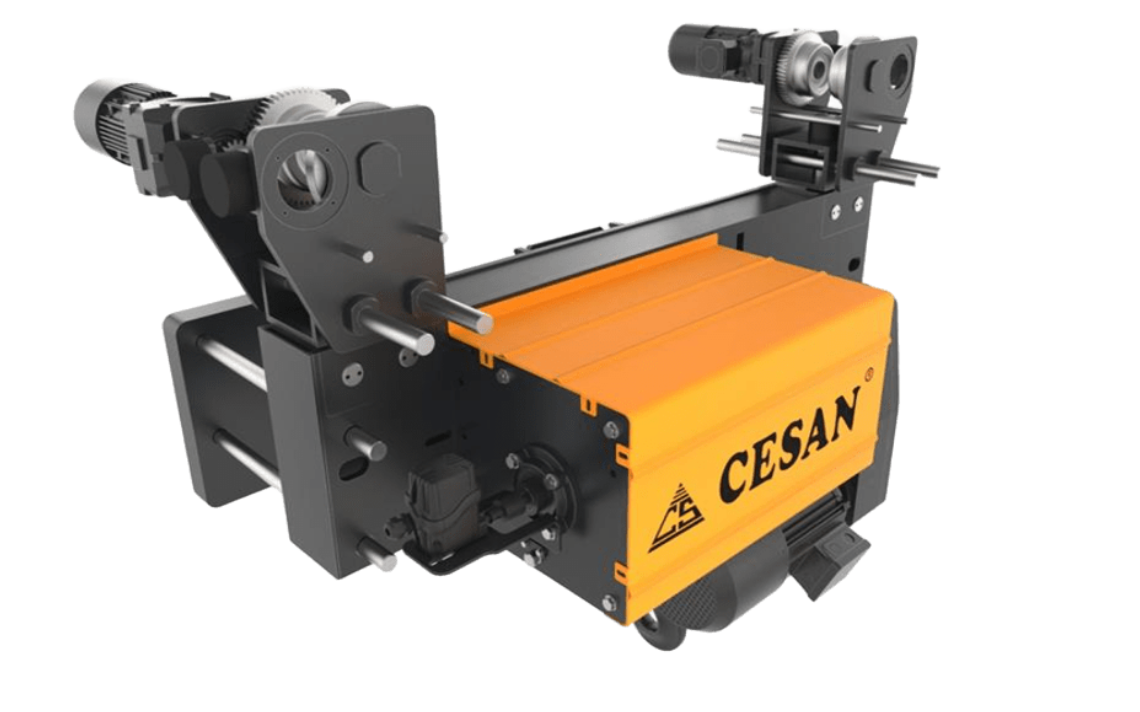

Monorail
Rotating Hoist
Engineered for low-headroom, short-span plants where installation simplicity, light structural load, and economic operation are the priority. Ideal for transportation and stacking across manufacturing and logistics facilities.
Request a Quote- Low headroom — suitable for constrained facilities
- Light construction reduces load on plant structure
- Higher lifting height via runway beams to roof
- Rolled profile girders to 18 m; box girders beyond
- Pendant or wireless remote control
- Short delivery times, competitive pricing

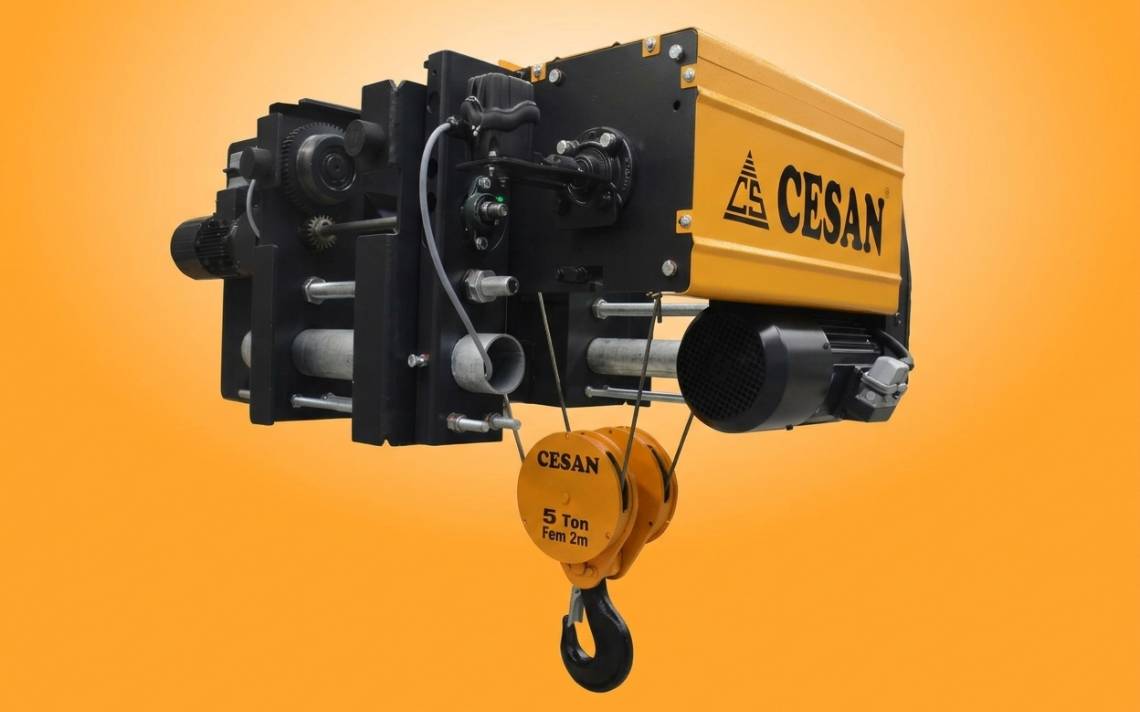

Monorail
Hoist
The Single Girder Overhead Crane hoist — a proven standard design. Reliable, economic, and highly optimised for fast installation with a lighter footprint that places less load on the plant structure.
Request a Quote- Appropriate for low-headroom and short-span plants
- Light and efficient for transportation and stacking
- Lower investment cost vs. double-girder systems
- Rolled profile girders to 18 m; box girders beyond
- Pendant or remote control — no cabin required
- Custom motor and gearbox — jerk-free operation

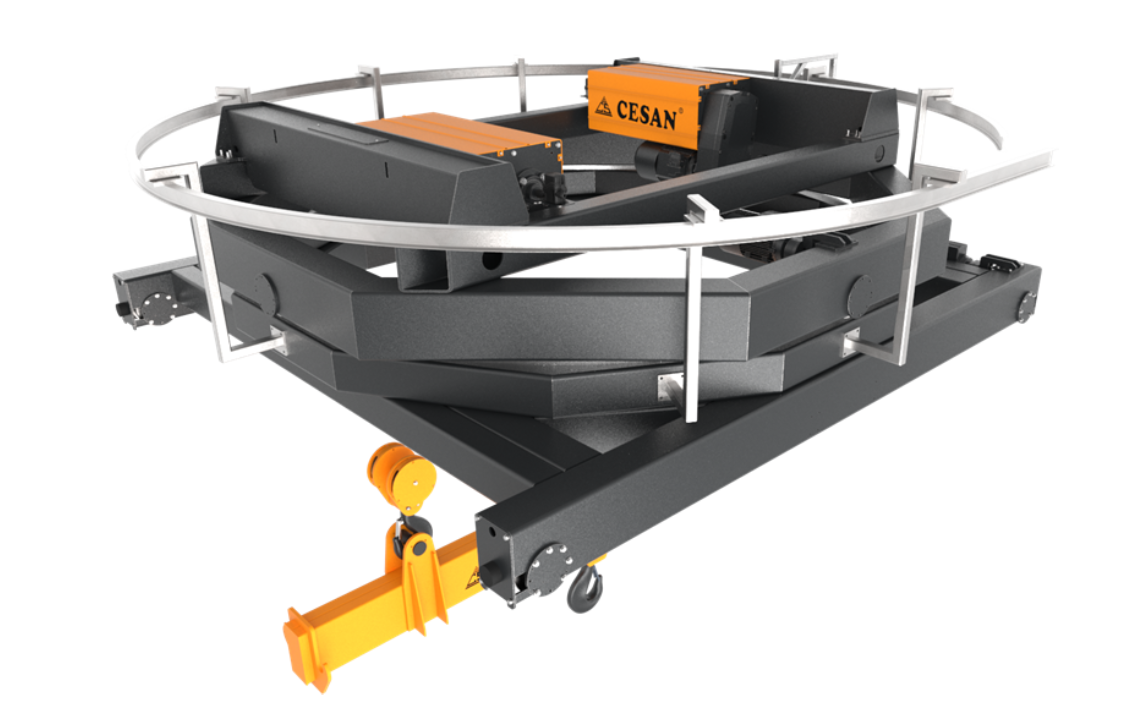

Double Girder
Motorised Rotation
Cesan's heavy-lifting flagship. Designed for safe lifting and loading of the heaviest tonnages — from steel mills to port facilities. The hoist sits on top of the girders, maximising available lifting height.
Request a Quote- Hoist on top of girders — maximises hook height
- Standard maintenance walkway along full girder
- Special sandblasting; environment-specific coatings
- Girder design per FEM, DIN, VDI, CMMA norms
- Multiple hoists or secondary monorail below girder
- Pendant, remote, or fixed / travelling cabin control

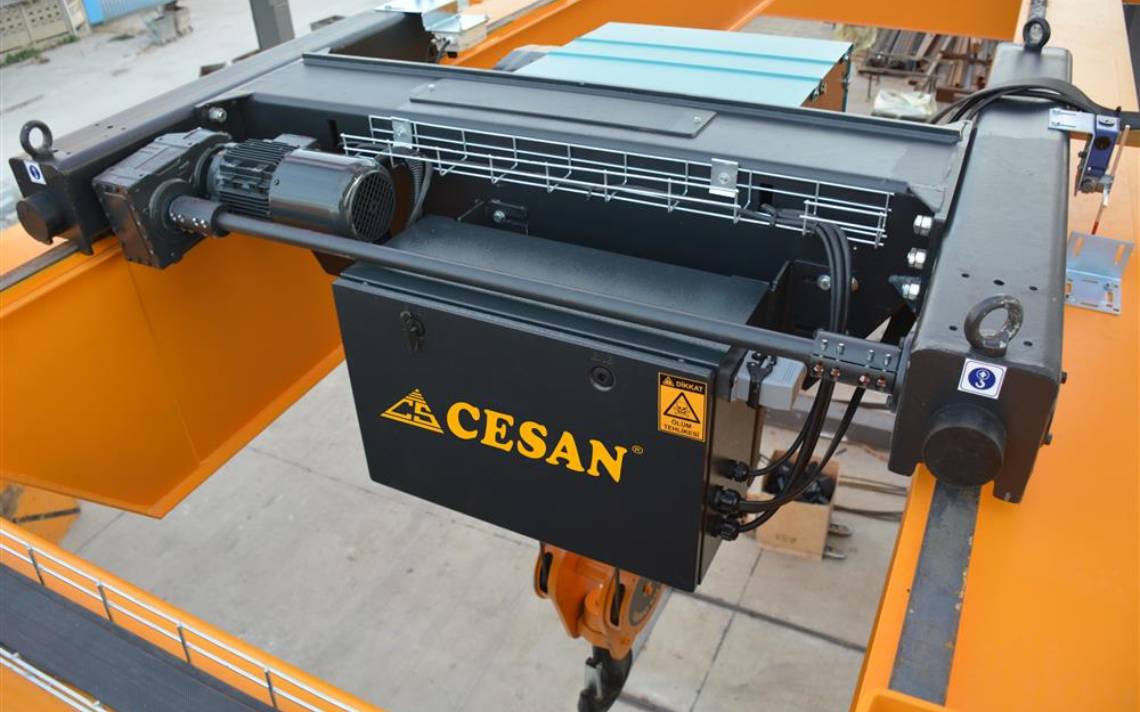

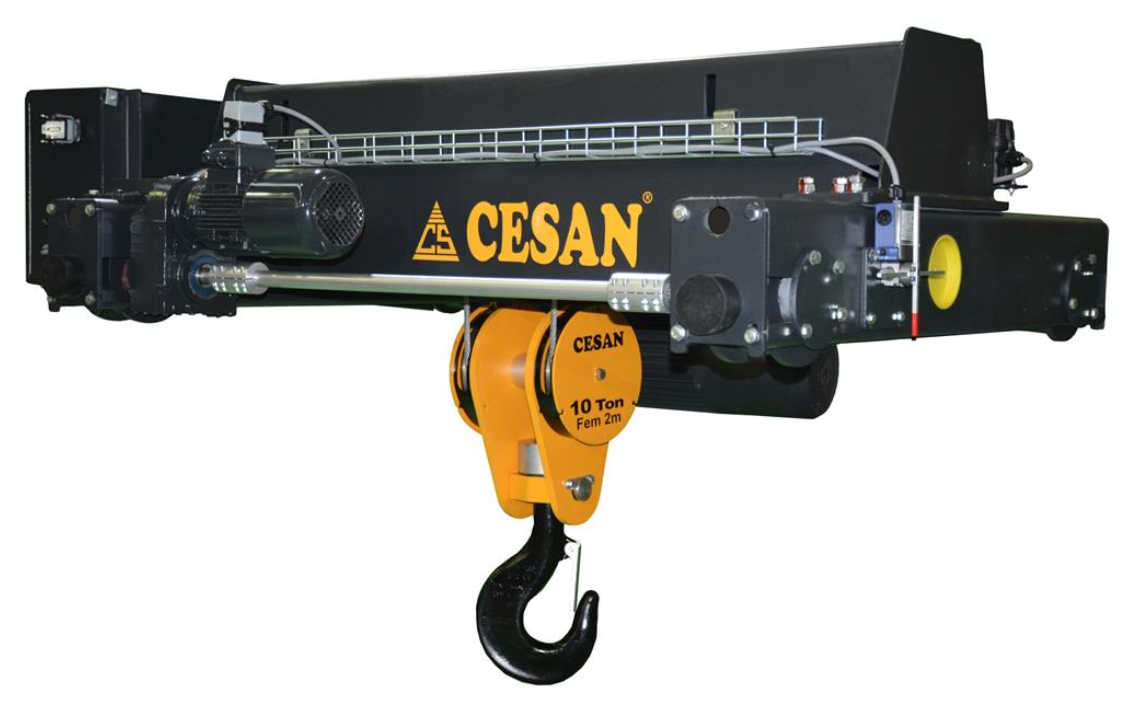

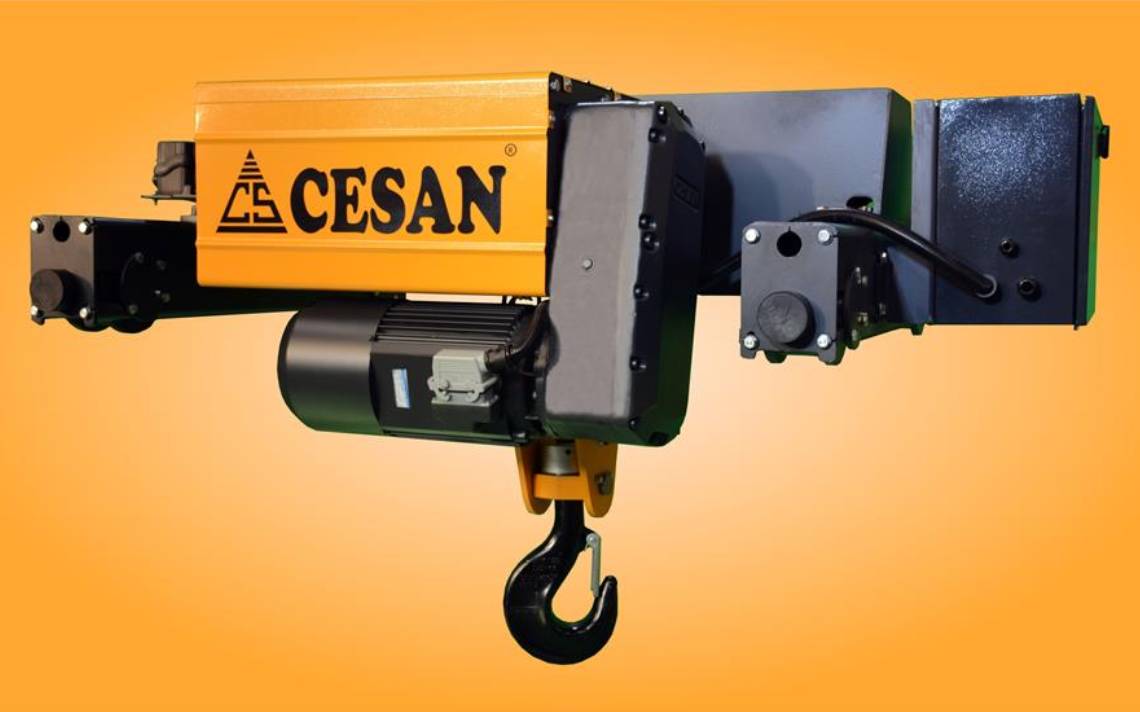

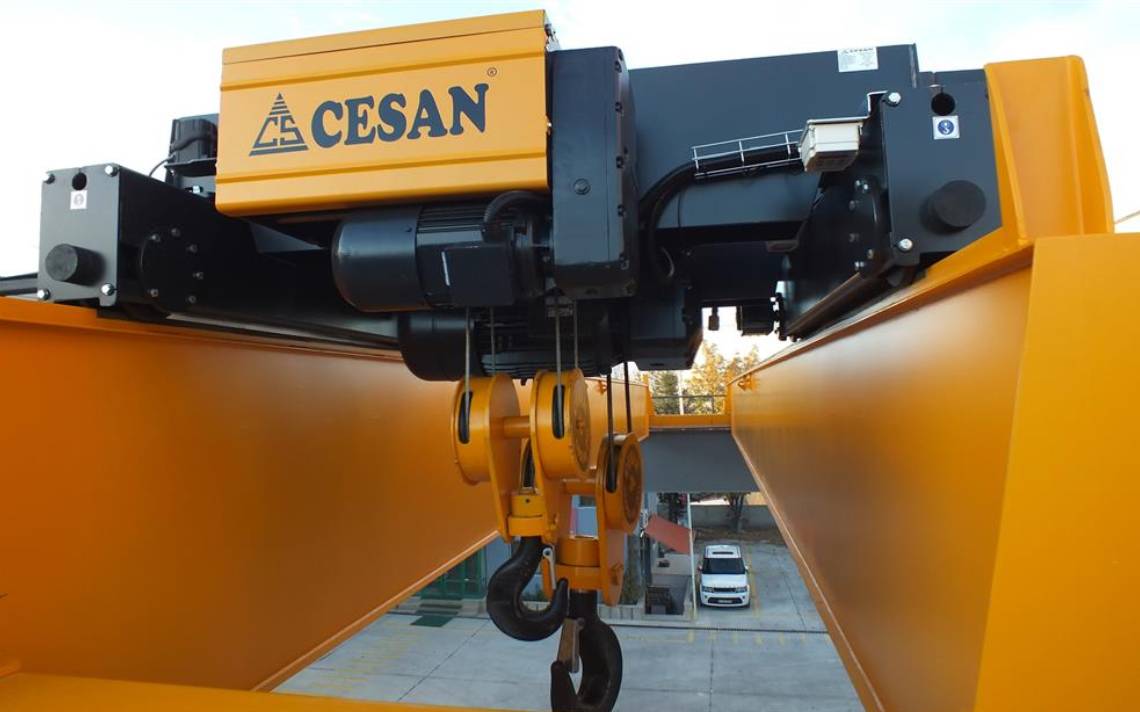

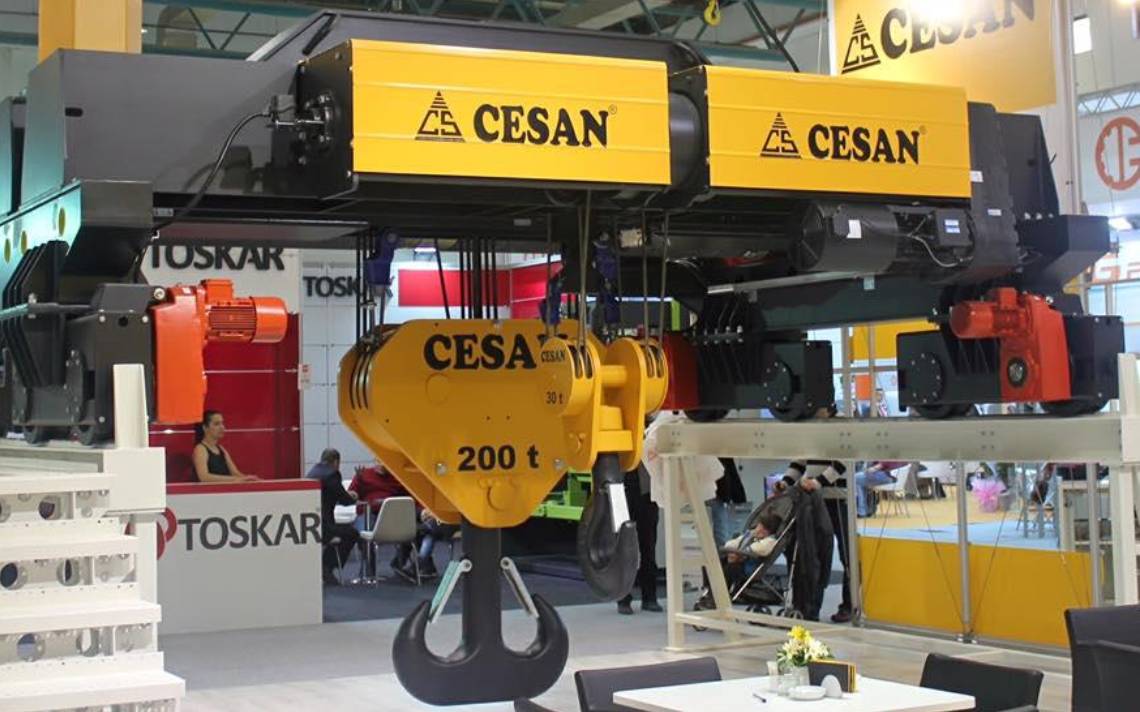

Double Girder
Hoist
The standard heavy-duty crab unit. Whether you need a single hoist or a fully custom multi-hoist overhead crane system, Cesan's production covers structural design through to final commissioning.
Request a Quote- Safe heavy-tonnage lifting — up to 160 T standard
- Top-of-girder placement maximises lifting height
- Standard maintenance platform along girder length
- World-standard sandblasting and coating systems
- One or more hoists; secondary monorail below girder
- Cabin travels independently from the lifted goods
Specifications
| Parameter | Value / Range | Notes |
|---|---|---|
| Capacity range | 1 T — 25 T | Standard SWL steps |
| Max span (rolled profile) | Up to 18 m | Welded box girder beyond 18 m |
| Headroom | Ultra-low headroom | Optimised for constrained facilities |
| Lifting speed | 1 – 16 m/min | VFD-controlled option available |
| Duty class | FEM 2m – 3m | Heavy-duty configuration available |
| Drive system | Drum & wire rope | 6×19 or 6×37 rope construction |
| Trolley travel speed | 2 – 20 m/min | Motorised travel standard |
| Control | Pendant / Radio remote | CE-marked controllers |
| Protection class | IP55 | IP65 on request |
| Standards | FEM / DIN / ISO | CE Declaration supplied |
| Ambient temp. | −20 °C to +50 °C | Special ranges on request |
| Parameter | Value / Range | Notes |
|---|---|---|
| Capacity range | 1 T — 160 T | Higher capacity on request |
| Lifting speed | 0.5 – 10 m/min | VFD standard on heavy units |
| Duty class | FEM 2m – 4m | Extreme duty available |
| Drive system | Drum & multi-layer rope | Helical-grooved drum |
| Girder mounting | Top of double box girder | Top-running rail mount |
| Cross-travel speed | 5 – 40 m/min | VFD-controlled |
| Secondary hoist option | Monorail hoist below girder | Custom configuration |
| Operator cabin | Fixed or travelling cabin | Travels independently of load |
| Surface treatment | Sandblast + industrial paint | Environment-specific coatings |
| Design norms | FEM / DIN / VDI / CMMA | Full CE documentation |
| Protection class | IP55 | IP65 / Ex-proof on request |
| Ambient temp. | −20 °C to +50 °C | Molten metal / EX on request |
Monorail vs. Double Girder
| Metric | Monorail / Single Girder | Double Girder Crab |
|---|---|---|
| Capacity range | 1 T – 25 T | 1 T – 160 T |
| Headroom | Ultra-low headroom | Standard / Heavy industrial |
| Max girder span | 18 m profile / custom box | Custom welded box girder |
| Hook position | Below the girder | Max height — hoist on top |
| Maintenance access | Standard | Built-in walkway platform |
| Multi-hoist option | Single hoist | 1+ hoists + secondary monorail |
| Operator cabin | No | Yes — fixed or travelling |
| Design norms | FEM / DIN / ISO | FEM / DIN / VDI / CMMA |
| Best for | Assembly, workshops, logistics | Steel, ports, heavy process |
Built to Standard
Defines duty classes, structural load groups, and safety factors for European crane and hoist design.
German engineering norms governing material grades, weld quality, and mechanical tolerances for lifting equipment.
Applied to heavy crane girder design and structural engineering calculations across Cesan's double girder range.
EU market conformity declaration supplied with every unit. Full technical file available for regulatory inspection.
Ready to Specify Your Hoist?
Our engineers will match the right hoist series, capacity, duty class, and control configuration to your exact facility — at no obligation.
