Portable
Gantry
No rails. No civil works. No fixed infrastructure. Swivel-wheel mobility lets you reposition anywhere on the shop floor — lock it in place, lift the load, move on. Available in fixed, adjustable, and foldable configurations.
Portable
Gantry
Fully Mobile — Lock & Lift
Heavy-duty polyurethane swivel-lock casters let you wheel the crane to any position on a firm, level floor. Four-position wheel locks engage instantly to stabilise the frame before lifting begins — no floor anchors or runway preparation needed.
Adjustable Height & Span
Telescoping uprights adjust lifting height in increments to clear obstacles or pass through low doorways. Adjustable span options let you narrow or widen the A-frame legs — useful when working in tight aisles or manoeuvring around machinery.
Electric or Manual Hoist
Configure with an electric chain hoist for frequent or heavy-duty batch handling, or a manual chain block for infrequent lifts and budget-conscious operations. Both options use standard-profile I-beam trolleys compatible with push-pull or geared trolleys.
Lift Anywhere, No Infrastructure Required

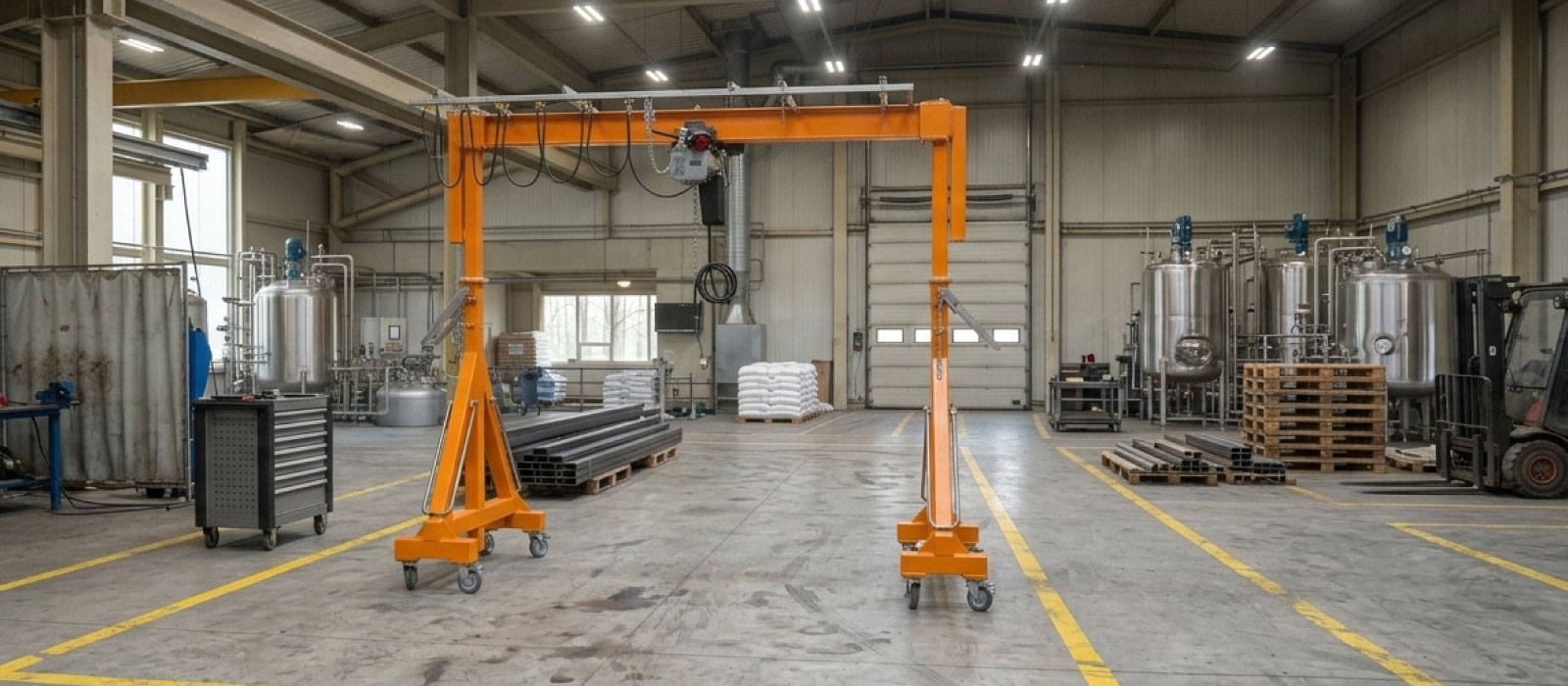

Portable gantry cranes are the practical answer when a fixed overhead crane isn't feasible — in maintenance workshops, temporary assembly sites, rental fleets, or facilities where lifting needs move around the floor. No runway beams, no rails, no civil works. Wheel it into position on any firm, smooth surface, lock the casters, and lift.
Cesan portable gantries are available in three configurations to match your operation: fixed height and span for repetitive tasks in a defined area; adjustable height and span with telescoping uprights for variable clearances and aisle constraints; and foldable aluminium models for facilities that need a crane transported in a van or service truck. Capacities run from 250 kg up to 5 tonnes, spans to 15 m, and lifting heights to 12 m.
Every unit is supplied with CE, ISO, and TÜV certification, a proof test certificate at 125 % of rated capacity, and full maintenance documentation. Steel models are powder-coated for indoor and outdoor durability; aluminium models offer 50 % weight savings and inherent corrosion resistance for cleanrooms or coastal environments.
- Zero fixed infrastructure — no rails, runway beams, or foundations
- Repositions in minutes — wheel across the floor, lock casters, lift
- Adjustable height and span — fits through doorways and tight aisles
- Foldable aluminium option — transports in a standard van or service truck
- Steel or aluminium frame — full indoor/outdoor and cleanroom suitability
- Electric or manual hoist — choose output to match duty frequency
- Proof tested at 125 % rated capacity — certificate supplied with every unit
Key Specifications
Custom capacity, span, height, and hoist configuration — contact our engineering team.
Full Specifications
| Parameter | Value / Range | Notes |
|---|---|---|
| Lifting capacity | 0.25 T — 5 T | Standard SWL steps: 0.5 / 1 / 2 / 5 T |
| Span | 2 m — 15 m | Adjustable span option available |
| Lifting height | 1 m — 12 m | Telescoping upright option available |
| Frame material | Steel / Aluminium | Aluminium ~50 % lighter; corrosion-resistant |
| Configuration | Fixed / Adjustable / Foldable | Foldable for van transport |
| Drive system | Manual or Electric chain hoist | Pneumatic hoist option on request |
| Trolley type | Push-pull or Geared | Universal I-beam profile — wide compatibility |
| Casters | Heavy-duty swivel-lock | Polyurethane or mouldon rubber wheels |
| Floor surface required | Firm and smooth | Concrete or similar; not for soft ground |
| Proof test | 125 % of rated SWL | Certificate supplied with every unit |
| Safety class | CMAA Class A / B | Infrequent to light service duty |
| Ambient temperature | −10 °C to +50 °C | Special ranges on request |
| Design standards | CE / ISO / TÜV / BV / GOST / RTN | Full documentation supplied |
| Finish (steel) | Powder-coated | Indoor and outdoor rated |
Standard & Optional Features
Standard Features
- Heavy-duty swivel-lock casters with brakes
- Standard American I-beam — universal trolley compatibility
- Push-pull manual trolley included
- Upper and lower limit switches on electric models
- Overload protection — mechanical trip at rated capacity
- Proof test certificate at 125 % SWL
- CE, ISO, TÜV certification with full documentation
- Powder-coat finish (steel) / anodised (aluminium)
- Pendant push-button control (electric models)
- Assembly tools and instruction manual included
Optional Features
- Adjustable-height telescoping uprights
- Adjustable span / variable A-frame width
- Foldable frame — collapses for van transport
- Aluminium frame — lightweight and corrosion-free
- Electric chain hoist upgrade
- Pneumatic (air) hoist for ATEX / Ex-proof environments
- Geared trolley for precise beam positioning
- Radio remote control for electric models
- Load indicator / digital readout
- GOST / BV / RTN certification for export markets
- Custom RAL colour finish
Typical Applications
Maintenance Workshops
Wheel to the machine, lift out the component, roll to the bench — no fixed runway needed anywhere in the bay.
Engine & Gearbox Assembly
Precise load positioning along the I-beam for engine builds, gearbox changes, and heavy component installation.
Service Bays & Garages
Low-headroom adjustable models fit under mezzanines and through standard garage openings — no permanent installation.
Temporary Assembly Sites
Foldable models transport in a van and set up in minutes for field assembly, installation, or construction work.
Cleanrooms & Labs
Aluminium frames are corrosion-resistant and ESD-friendly — suited for pharmaceutical, semiconductor, and food environments.
Rental & Hire Fleets
Compact footprint, quick assembly, and foldable transport make portable gantries the backbone of crane hire operations.
Small Production Areas
Where overhead structure can't support a runway beam, a portable gantry delivers crane capability without modification to the building.
Outdoor Field Operations
Steel powder-coated frames handle outdoor conditions for utilities, telecoms, and on-site equipment servicing.
Need a Crane That Moves With You?
Tell us your capacity, span, and working environment. We'll configure the right portable gantry — fixed, adjustable, or foldable — and get you a detailed proposal within 48 hours.
